Ford Bronco (2021+) Roof Mount Kit

Product Code
#3001-BRONCO-109-K-US

From $925.00

To $1,775.00

Ford Bronco (2021+) Roof Bracket Kit   + $125.00
Ford Bronco (2021+) Roof Mount Kit

In stock

$925.00

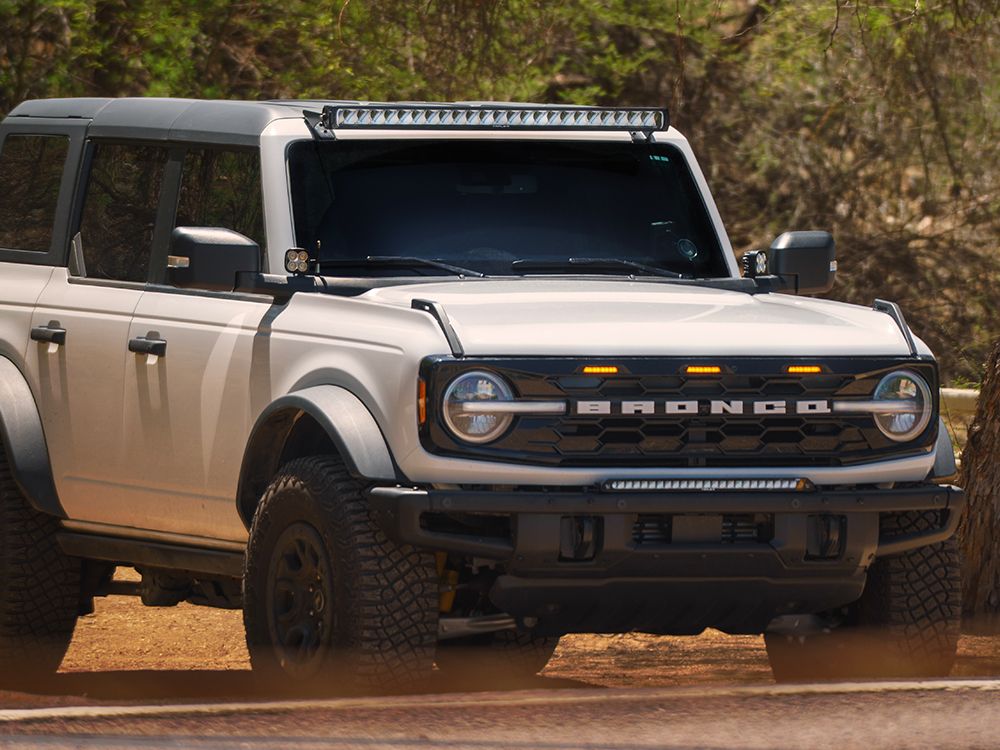

Specifically engineered for the Ford Bronco (including Raptor) without roof rails, the Triple-R Lights Roof Mounting Kit, for 2021-2024 vehicles, comprises stylish satin black, stainless steel mounting brackets that fix within the vehicle’s roof ditch channel for a seamless roof installation. Available to fit either our LR-24 or Linear-42, both options deliver exceptional lighting performance coupled with high-end product design.

Borne out of development and testing at the highest levels of professional motorsport/powersports, the LR-24 Elite represents the pinnacle of long-range LED lighting, and now available in Elite+ for those wanting the flexibility to alternate between white and yellow light, or a combination of the two. By contrast the Linear-42, with it's low profile aerodynamic design is the perfect choice for customers looking for something more discreet, with the added benefit of superior low wind noise at high driving speeds.

Manufactured from 4mm stainless steel, and finished with a satin black powder coat, the mounting brackets are fully corrosion resistant in line with automotive grade quality standards. The installation of those brackets to your vehicle is completed using factory bolts for a quick and secure fitment.

LIGHTS SOLD SEPARATELY.
(Wiring included with the lamps)

PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Ford Bronco (2021+) Roof Mount Kit

Complete one-stop solution for roof-mounting on Ford Bronco (including Raptor) without Roof Rails

Optimised for LR-24 or Linear-42 installation.

Made from 4mm A2 stainless steel

Satin black powder coat provides great UV-stability and abrasion resistance

Fits to factory bolts for a quick and secure installation

Designed and manufactured in the UK

Technical Specifications





LINEAR-42

LINEAR-42 ELITE

LR-24 ELITE

LR-24 ELITE+
(BOOST MODE)


Voltage Range (DC) 10-32V 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs
Weight 7.7 lbs 7.7 lbs 9.9 lbs 9.9 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 15750 Lm 33300 Lm 27060 Lm 24056 Lm
Total Driver 'FOV' Flux † 11214 Lm 23909 Lm 17833 Lm 14928 Lm
Colour Temperature 5000K 5000K 5000K 5000K
Power Consumption 147 Watts 355 Watts 312 Watts 256 Watts
Current Draw (14.4V) 10.2 Amps 24.7 Amps 21.7 Amps 17.9 Amps
Connector 2-Pin Superseal
(+25cm Cable)
2-Pin Aptiv
(+25cm Cable)
2-Pin Econoseal
(+25cm)
2-Pin Aptiv
(+25cm)

CERTIFICATION
IP Rating # IP68 IP68 IP68 IP68
Salt Spray Test ISO 9227 ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2

PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle 50° / 20° 60° / 15° 30° / 15° 54° / 15°
0.25 lux 984m 1530m 2352m 2145m
0.5 lux 696m 1082m 1663m 1517m
1 lux 492m 765m 1176m 1072m
3 lux 284m 442m 679m 619m




† – Driver FOV flux is a measure of effective lumens taking into account the light within a driver’s field of view (±45° left/right, ±10° up/down). For more information – click here.

# – All Triple-R products are designed to meet IP68 standards. Every lamp produced at our UK facility is fully submerged under water prior to shipment.

What's Included
  • 2x Stainless Steel Mounting Bracket (LH/RH)
  • Fixtures

Fitting instructions available in the downloads section below.
