INEOS Grenadier Grille Kit (for Sentinel 7'')

Product Code
#USGREN-02

From $1,000.00

To $1,175.00

INEOS Grenadier Grille Kit (for Sentinel 7'')

In stock

$1,000.00

For an OE-quality auxiliary LED light installation, Triple-R Lights Grille Integration Kits provide bespoke mounting brackets for quick, easy, and secure fitting of Triple-R High Performance LED lights within the front grille of popular road cars, pick-up trucks, and light commercial vehicles. Designed to integrate seamlessly with each vehicle's original styling, the resulting lighting setup is both robust and secure, with added protection against theft.

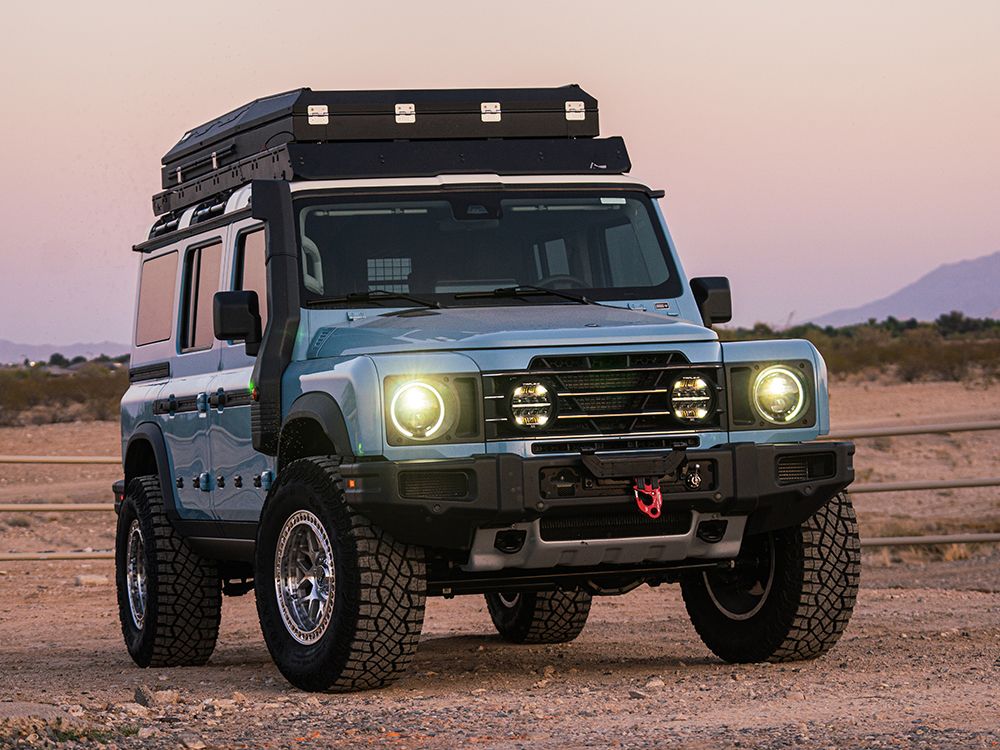

The INEOS Grenadier Grille Integration Kit includes a pair of Sentinel 7” High Performance LED driving lights, a wiring kit, and two precision-engineered mounting bracket surrounds that fit perfectly within the standard center grille of the Grenadier, replacing the factory-installed grille lights. For enhanced durability and security, the brackets are secured using the supplied self-tapping plastic screws.

Made from a high-strength composite material with excellent UV stability, the brackets are fully weather- and chemical-resistant, ensuring long-lasting performance in any conditions. To assist with installation, the kit also includes a set of cutting guides, ensuring a precise and professional fit every time.

Precision engineered in-house in the UK, our Grille Integration kits are designed to blend seamlessly with the original vehicle styling. The mounts match every detail, line and contour, whilst also featuring a grained finish to perfectly complement the existing grille texture. The grained finish also features a unique 'colour shift' aspect, where the mounts can appear darker / lighter depending on the angle and lighting. This iridescence has been carefully developed to enhance the look of the mounts and the overall installation. In line with the Triple-R Lights' brand, this attention to detail is unmatched and the resulting installation has a true OEM grade finish, delivering not only performance but incredible aesthetics.

The INEOS Grenadier Grille Integration Kit is carefully engineered and optimised for use with Sentinel 7'' High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Triple-R Lights’ branded products.

PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

INEOS Grenadier Grille Kit (for Sentinel 7'')

Bespoke vehicle integration kit for Triple-R LED light installation

Custom fit for Ineos Grenadier

Available with: Sentinel 7’’ High Performance LED lights

Kit also includes bespoke mounting bracket surrounds and two-lamp wiring kit

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications


2x
SENTINEL 7''
(BOOST MODE)

2x
SENTINEL 7'' ELITE (with Backlight)
(BOOST MODE)


Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 11 lbs 11 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 10,416 Lm

20,496 Lm

Total Driver 'FOV' Flux † 6,500 Lm 12,760 Lm
Colour Temperature 5000K 5000K
Power Consumption  120 Watts 232 Watts
Current Draw (14.4V) 8.6 Amps 15.2 Amps
Connector 2-Pin Superseal
(+25cm Cable)
3-Pin Superseal
(+25cm Cable)

CERTIFICATION
IP Rating # IP68 IP68
High Beam DOT / SAE J581
(Low Output Mode only)
DOT / SAE J581
(Low Output Mode only)
EMC Certification ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 60° / 12° 65° / 18°
0.25 Lux 1720m 1744m
0.5 Lux 1217m 1233m
1 Lux 860m 872m
3 Lux 497m 503m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • 1x Grille Mounting Kit (Includes cutting guides)
  • 2x LED Lights (Sentinel 7'')
  • 1x Two-Lamp Wiring Kit
  • Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
