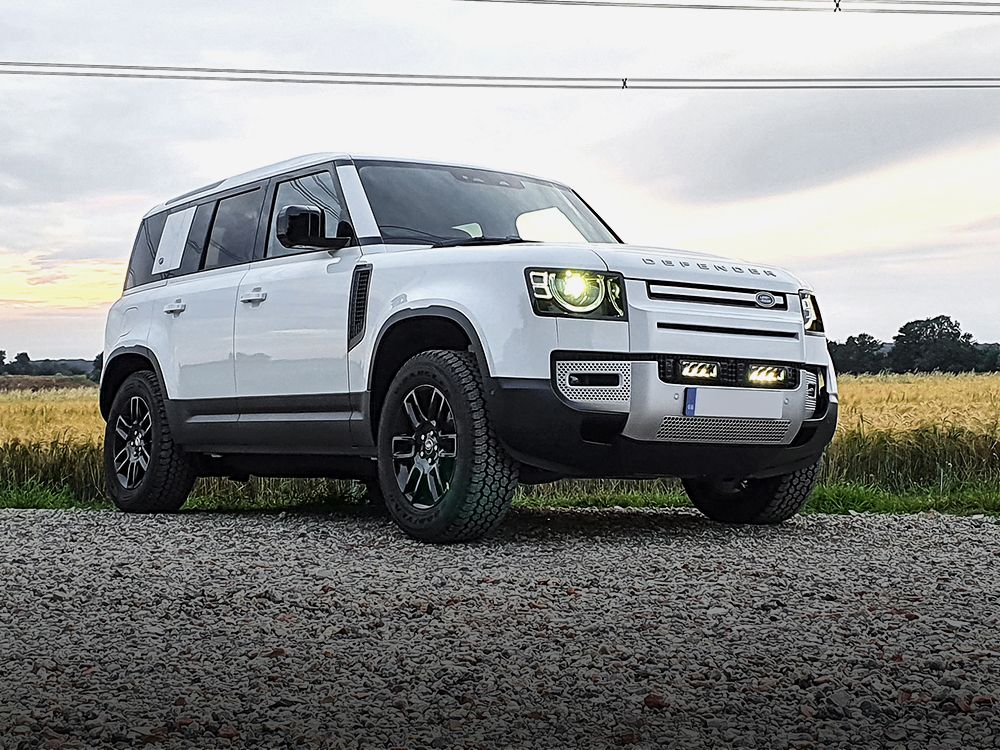

Land Rover Defender (2020+) - LR-750 Grille Kit

Product Code
#GK-USDEF750-01K/GK-USDEF750-ELITE-01K

From $710.00

To $1,090.00

Land Rover Defender (2020+) - LR-750 Grille Kit

In stock

$710.00

Upgrade the look and performance of your Land Rover Defender (2020+) with our custom-fit Grille Integration Kit—designed to deliver a sleek, OE-style finish while packing in powerful, road-legal lighting performance.

Each kit includes a pair of LR-750 High Performance LED driving lights, available in three variants to suit different driving needs. The Standard is a versatile all-rounder, offering a well-balanced beam pattern with excellent distance and spread, plus integrated backlight function. Designed for versatility, the Beacon variant has an integrated amber beacon and Backlight function, along with advanced features like flash-to-dim. For maximum performance, the Elite delivers superior optics and extended range for serious night-time driving.

The LR-750 Elite and LR-750 Beacon features dual-output technology. Operating at 100% the light represents the very best output and optimized light distribution for off-road use. Reducing the light output, through removal of the lamps Boost Cap (Elite) or via Flash-to-dim (Beacon), allows the light to operate in DOT compliant mode for use on public highways, dependent on state-specific laws. Please click here more information.

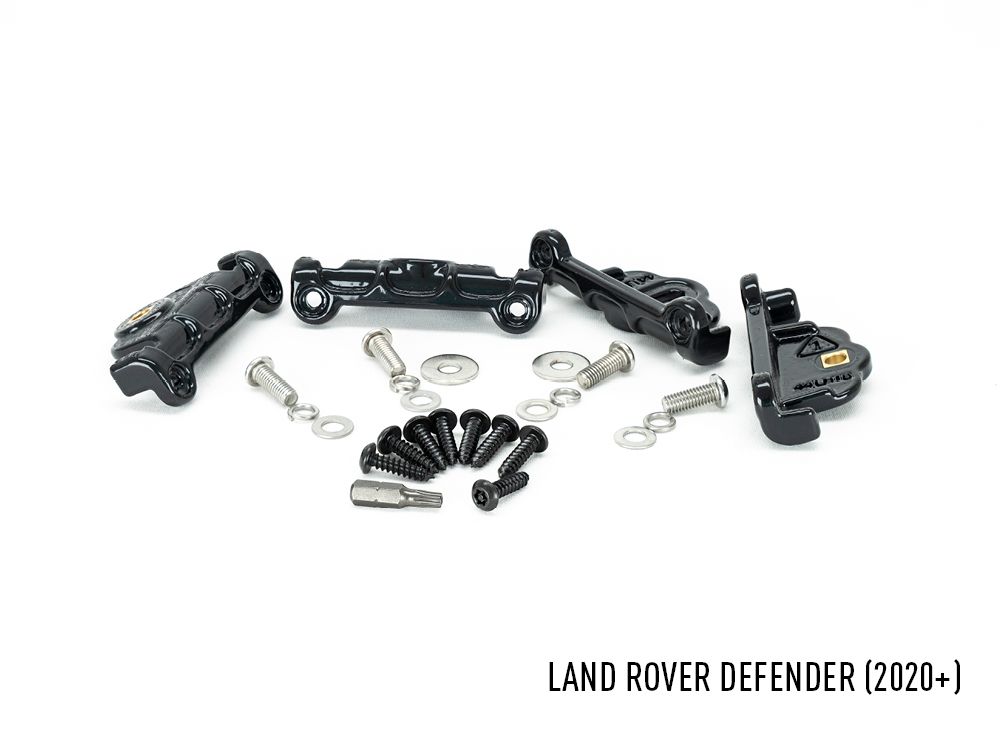

The lights are mounted using four precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes cutting guides, a two-lamp wiring loom, and anti-theft fasteners for an easy, secure and long-lasting installation.

Please note: The Land Rover Defender (2020+) Grille Integration Kit is carefully engineered and optimised for use with LR-750 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Triple-R Lights’ branded products.

When connecting the LR-750 Elite or LR-750 Beacon direct to the high beams and the vehicle has automatic high beam assist, and/or LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface.

PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Land Rover Defender (2020+) - LR-750 Grille Kit

Bespoke vehicle integration kit for Triple-R LED light installation

Custom fit for Land Rover Defender (2020+)

Designed for use with LR-750 High Performance LED lights

Kit also includes cutting guides and two-lamp wiring kit

Brackets made from high strength, UV -stable, composite material

5-year warranty

Made in Britain

Technical Specifications






2x
LR-750

2x LR-750
BEACON
(BOOST MODE)

2x LR-750
ELITE
(BOOST MODE)


Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours
Weight 5.7 lbs 5.7 lbs 5.7 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm 10800 Lm

10136 Lm

Total Driver 'FOV' Flux † 5572 Lm 2484 Lm 6680 Lm
Colour Temperature 5000K 5000K 5000K
Power Consumption 88 Watts 104 Watts 104 Watts
Current Draw (14.4V) 6.2 Amps 7.4 Amps 7.2 Amps
Connector 3-Pin Superseal
(+25cm Cable)
6-Pin Superseal
(+25cm Cable)
2-Pin Superseal
(+25cm Cable)

CERTIFICATION
IP Rating # IP68 IP68 IP68
Salt Spray Test ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 19° / 18° 28° / 16° 42° / 13°
0.25 Lux 1225m 1249m 1358m
0.5 Lux 866m 883m 960m
1 Lux 612m 624m 679m
3 Lux 354m 361m 392m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1 Grille Mount Kit (includes cutting guides)
  • x2 LR-750 LED Light bars
  • x1 Two-Lamp Wiring Kit
  • Fitting Instructions
