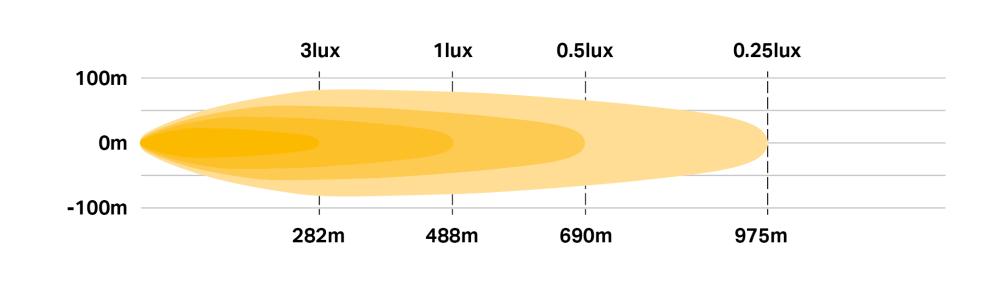

The Linear-18 Elite utilizes a combination of 36x highly efficient 3W LEDs which combine to deliver 12,150 raw lumens, and 1 lux to just under 488m. Impressive considering the lamp weighs 2.4lbs and has power consumption of 126W. Vacuum-metallized high-reflectivity optics are carefully designed and engineered in-house utilizing the latest CAD design and light simulation software, to deliver optimum light distribution in a drive beam pattern (42 degrees spread). The color temperature of the light at 5000K is carefully selected for its natural appearance proven to reduce driver fatigue. Integrated Daytime Running Lights provide a unique appearance to the light.

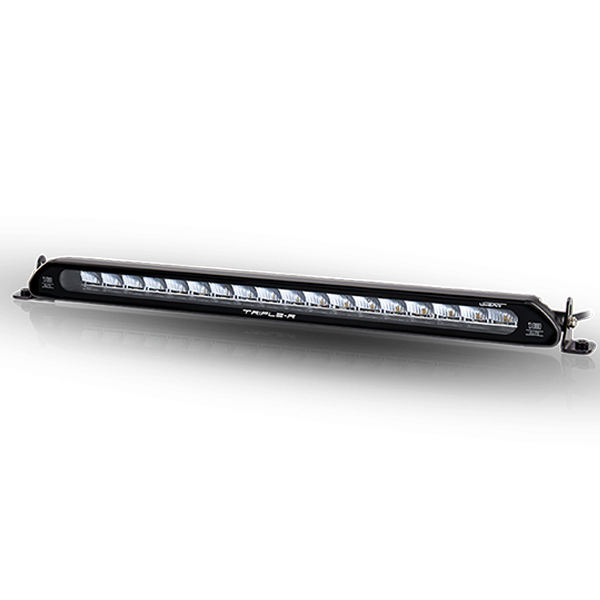

At 21” in length and under 2” in height, the Linear-18 Elite is easy to fit in tight and confined spaces, while the clean design of the Linear range provides for a premium look to impress on any vehicle. Supplied stainless steel side brackets allow flexibility in the mounting location and position, while anti-theft fasteners means the light will stay safe and secure.
Like all Triple-R light bars the Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.
PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY.
NOT FOR HIGHWAY USE
Please note all transactions are completed in USD:
For more information visit our Payment Terms page.
Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.
For international orders and delivery, please visit www.lazerlamps.com
If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.
Combination of highly efficient 3W ‘premium bin’ LEDs
Integrated Daytime Running Lights
Vacuum-metallized optics deliver wide spread of light
Flexible mounting options – anti-theft mounting brackets included
Sleek, low profile design facilitates installation
Electronic thermal management
Pressure equalization through GoreTex Breather technology
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
5 year warranty
Supplied with male/female connectors (pre-wired)
Designed & manufactured in UK
Based on: Linear-18 Elite (with backlight).
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
