Linear-6 Elite (Yellow)

Product Code

From $250.00

To $295.00

Linear-6 Elite - Yellow   + $250.00
Linear-6 Elite (Yellow)

In stock


The Linear-6 Elite (Yellow) utilizes a combination of 12x highly efficient 3W LEDs which combine to deliver 4,320 raw lumens, and 1 lux to over 280m. New for Autumn 2023, the Linear-6 Elite now comes available with yellow LEDs, providing a more efficient and practical solution for customers preferring the yellow color of light than using a yellow lens cover, especially relevant within the adventure bike, ATV, and UTV markets.

Considering the lamp weighs a little over 1lbs and has power consumption of just 42W, lighting performance is seriously impressive. Vacuum-metallized high-reflectivity optics are carefully designed and engineered in-house utilizing the latest CAD design and light simulation software, to deliver optimum light distribution in a drive beam pattern (64 degrees spread).

At a little over 9” in length and under 2” in height, the Linear-6 Elite is easy to fit in tight and confined spaces, while the clean design of the Linear range provides for a premium look to impress on any vehicle. Supplied stainless steel side brackets allow flexibility in the mounting location and position, while stainless steel anti-theft fasteners means the light will stay safe and secure.

Like all Triple-R light bars the Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.




Please note all transactions are completed in USD:

For more information visit our Payment Terms page.


Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.


For international orders and delivery, please visit


If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Linear-6 Elite (Yellow)

Combination of highly efficient 3W ‘premium bin’ LEDs

PC Yellow LEDs deliver an efficient solution for yellow colored light output

Vacuum-metallized optics deliver wide spread of light

Flexible mounting options – anti-theft mounting brackets included

Sleek, low profile design facilitates installation

Electronic thermal management

Pressure equalization through GoreTex Breather technology

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

IP68 watertight

5 year warranty

Supplied with male/female connectors (pre-wired)

Designed & manufactured in UK

Technical Specifications

Based on: 1x Linear-6 Elite (Yellow).

Voltage Range 10-32V
LED Life 50,000 hours
IP Rating IP68
Weight 1.1 lbs
Total Luminous Flux 4,320 Lm
Total Driver 'FOV' Flux † 2,839 Lm
Color Temperature PC Yellow
Number of High Output LEDs 12
Power Consumption 42 Watts
Current Draw (at 14.4V) 2.9 Amps

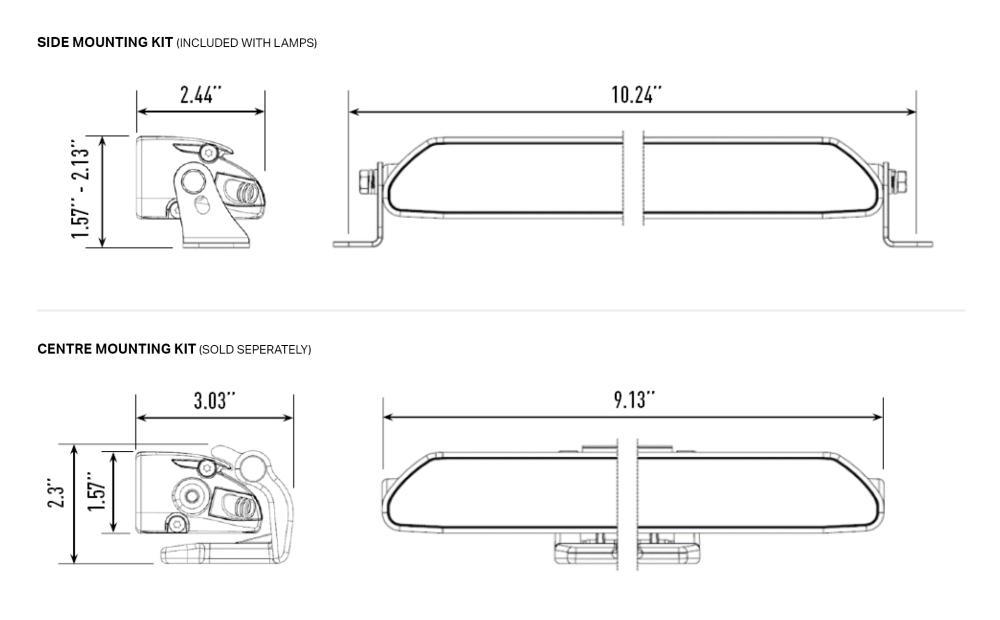

Width 9.13"
Depth 2.44"
Height 1.57"

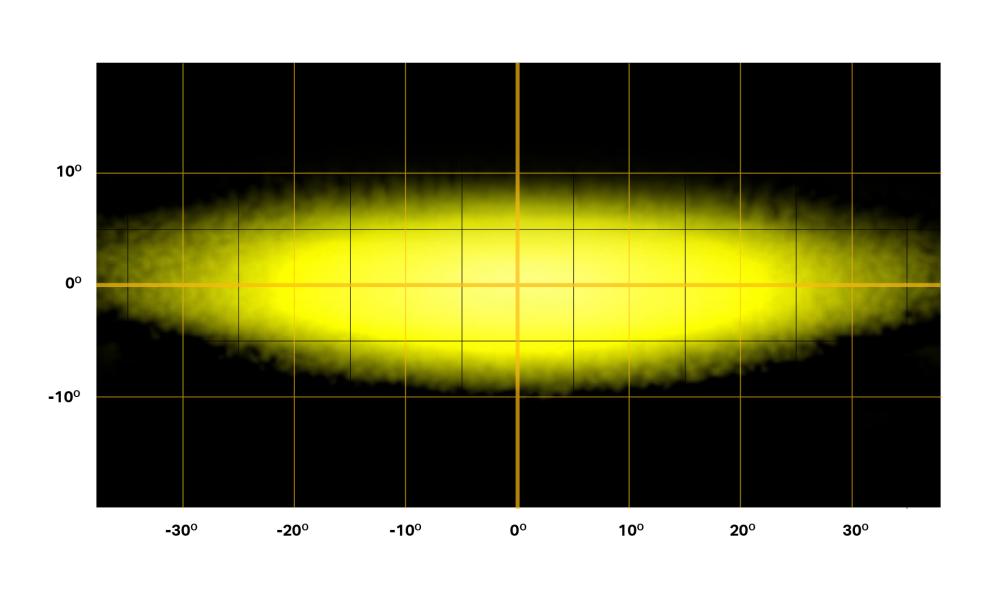

Horizontal Beam Angle 80˚

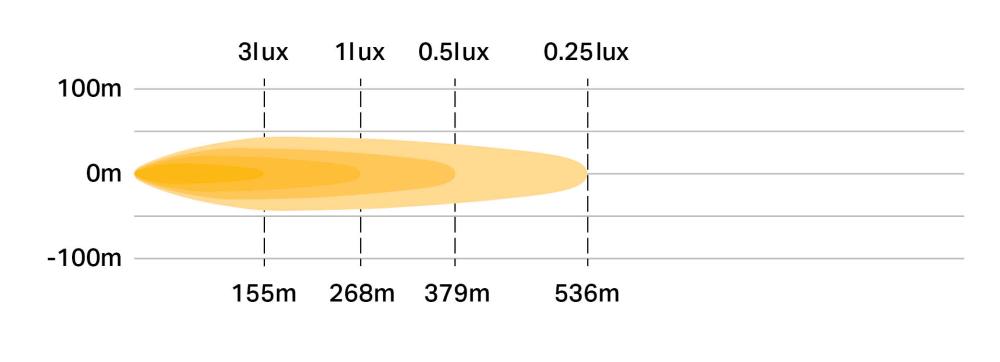

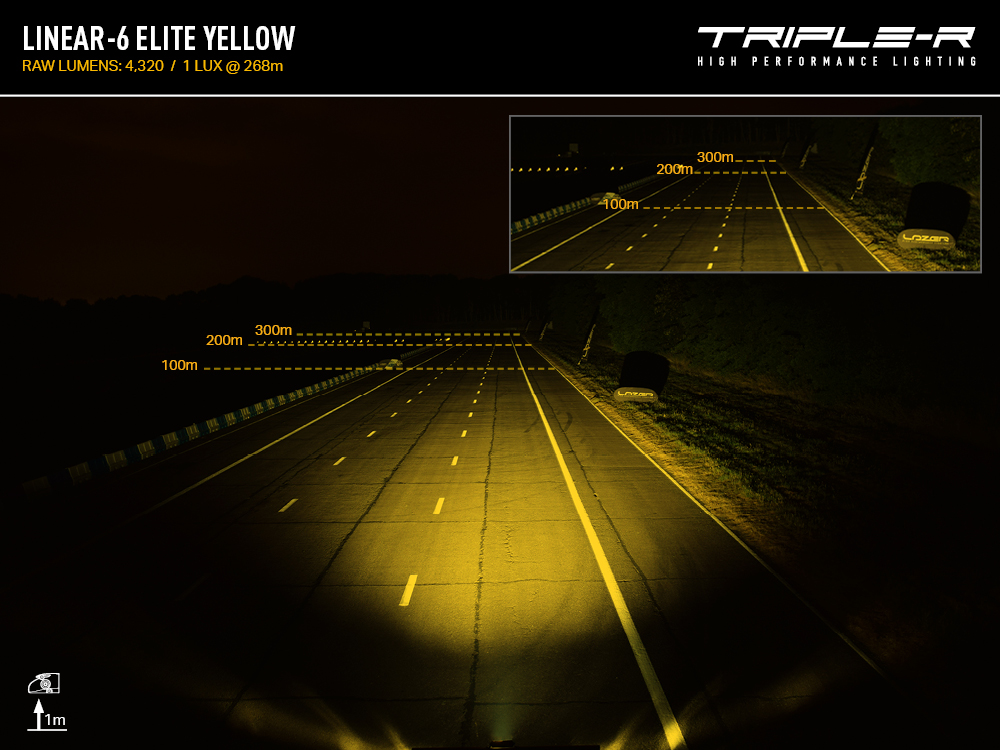

0.25 lx Line 536m
0.5 lx Line 379m
1 lx Line 268m
3 lx Line 155m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 1x Linear-6 Elite (Yellow) LED Light
  • 1x Anti-Theft Side Mount Kit (1127K)
  • 1x Fitting Instructions
