LR-1000

Product Code
#LR8-PL-B

From $425.00

To $480.00

LR-1000   + $425.00
LR-1000

In stock

$425.00

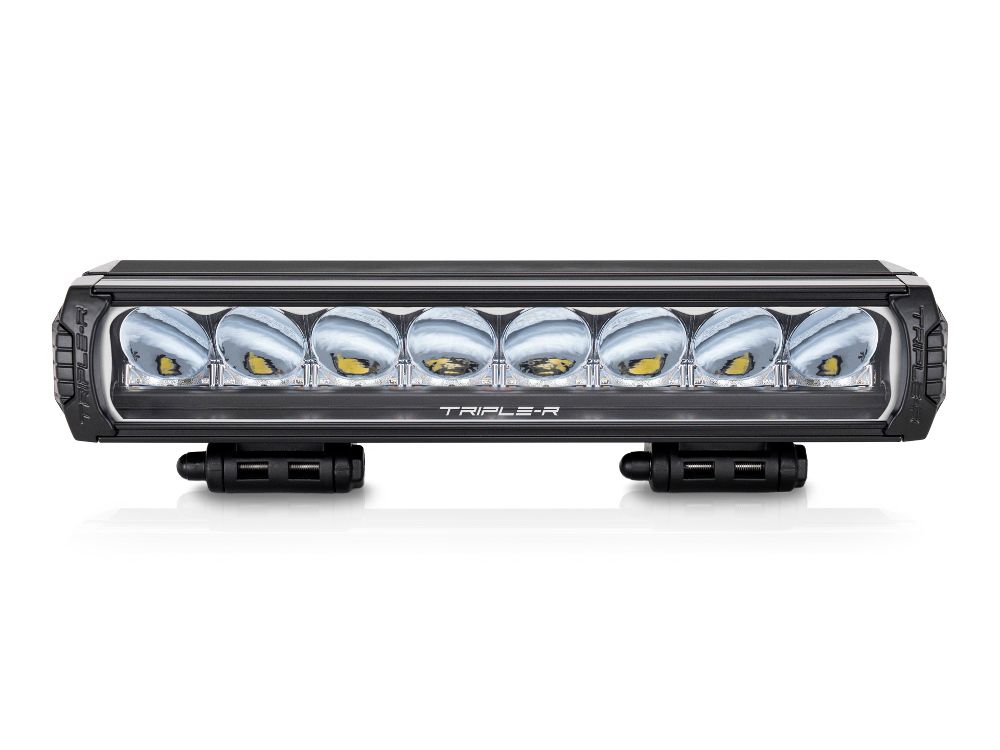

The LR-1000 is a versatile high-performance LED light solution delivering a spot beam pattern to an impressive 612m (1 lux). With performance and reliability borne out of development and testing at the highest levels of professional motorsport, the LR-1000 is a product to be trusted for all off-road, and on-road applications. With the option to connect white or amber backlight, combined with the refined styling and premium features of the light, this is a product to stand-out day and night.

At 16” in length and weighing just over 3lbs, the LR-1000 is built tough yet delivers a serious punch despite its lightweight design. ‘Premium bin’ high intensity LEDs, upgraded in 2020/1, deliver 9240 raw lumen at a natural 5000k color temperature. The long-range lighting is supplemented by a 19 degree spread of light ensuring a comfortable night drive experience, even over prolonged periods of time.

Like all aspects of the products design, nothing has been left to chance in pursuit of the best lighting performance, while also maximising the lights longevity and reliability. All LR Series lights come with a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.

PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY.



NOT FOR HIGHWAY USE






PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

LR-1000

Highly efficient LED technologies

Integrated white or amber backlight function

Ultra-reflective vacuum-metallised optics deliver spot beam pattern

Contemporary lamp design

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

CAE optimised heatsink offers improved thermal dynamics

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management

Pressure equalization through GoreTex Breather technology

‘Unbreakable’ and hardcoated polycarbonate lens

IP68 watertight

5-year warranty

Wiring harness kits available

Designed & manufactured in the UK

Technical Specifications

Based on: 1x LR-1000.

Voltage Range 10-32V
LED Life 50,000 hrs
IP Rating IP68
Weight 3.1 lbs
HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm
Total Driver 'FOV' Flux † 5572 Lm
Color Temperature 5000k
Number of High Output LEDs 8
Power Consumption 88 Watts
Current Draw (at 14.4V) 6.1 Amps
PHOTOMETRIC DATA
Horiz Beam Angle 19 Deg
0.25 lx Line 1225 metres
0.5 lx Line 866 metres
1 lx Line 612 metres
3 lx Line 354 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • x1 LR-1000 LED Light
  • x2 Centre Mount (1114K)
  • x1 Installation Instructions
