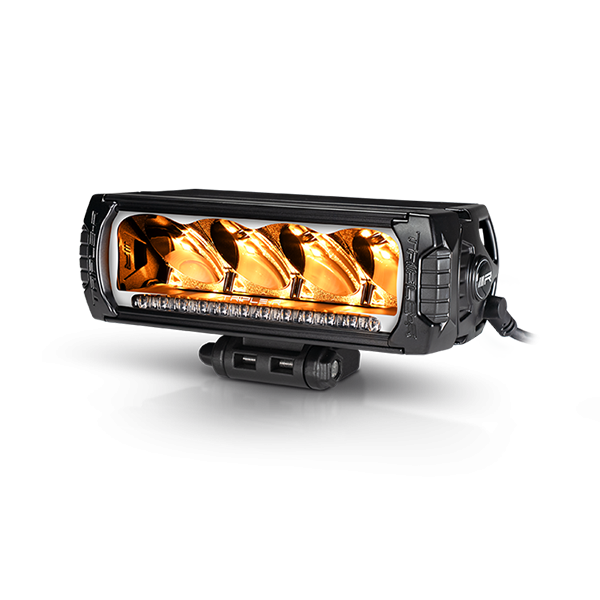

LR-750 Beacon

Product Code
#LR4-BCN-B

From $545.00

To $670.00

LR-750 Beacon   + $545.00
LR-750 Beacon

In stock

$545.00

The hugely versatile LR-750, a firm favourite across the passenger car/4x4, LCV, and heavy truck sectors, is now offered with integrated amber flashing beacon function. Incorporating 2 different forward-facing flash patterns, the additional safety functionality within the lamp, combines with the possibility to connect a white or amber backlight function, as well as the exceptional high beam driving light function to really set the LR-750 apart from the competition.

The LR-750 delivers a spot beam pattern well suited to road use. The lamp itself has a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles. Boasting an impressive 5,400 lumen, and delivering 1 lux to 442m, the auxiliary LED driving light provides good left/right spread of light with a 28deg horizontal spread of light. The lamp is compliant with SAE/DOT standards as a high beam driving light, through adoption of Triple-R’s dual output technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the SAE/DOT standards as an high beam driving light.

Included within the lamp is the option to connect an integrated backlight function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber coloured position lights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your LR-750 act as a high beam driving light only.

The Beacon function features 2 different amber warning light patterns which can be selected and synchronised (between multiple lamps), at the point of installation, or using a momentary switch where the requirement is to change the flash pattern on demand.

Like all Triple-R products, the LR-750 with Beacon function has been designed and engineered to deliver a powerful driving light with perfectly homogenous beam pattern. The colour temperature of the light, at 5000K, is carefully selected to maximise definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time. Performance is complemented by a superior build quality, borne out of our in-house UK manufacture, and backed up by our comprehensive 5year warranty.

PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

LR-750 Beacon

High density, premium-bin 11W LED technology

Integrated white or amber backlight function

Integrated amber flashing beacon function

DOT / SAE J581 Compliant (in Low Output Mode only)

Ultra-reflective vacuum-metallised optics deliver spot beam pattern

Contemporary lamp design

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

CAE optimised heatsink offers improved thermal dynamics

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management

‘Unbreakable’ and hardcoated polycarbonate lens

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

Supplied with pre-wired male/female 6-pin Superseal connectors

Designed & manufactured in UK

Technical Specifications
1x LR-750 BEACON

BOOST
MODE

LOW OUTPUT
(DOT/SAE Compliant)


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 1 kg

HIGH BEAM FUNCTION
Total Luminous Flux 5,400 Lm 3,078 Lm
Total Driver 'FOV' Flux † 1,242 Lm 707 Lm
Colour Temperature 5000K
Power Consumption 52 Watts 10 Watts
Peak Current Draw 5.14 Amps 0.88 Amps
Current Draw (14.4V) 3.7 Amps 0.7 Amps
Connector 6-Pin Superseal (+25cm Cable)

DIMENSIONS
Width 9.06''
Depth 4.06''
Height 2.87''

CERTIFICATION
IP Rating # IP68
High Beam DOT / SAE J581 (in Low Output Mode only)
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 28° / 16°
0.25 Lux 883m 424m
0.5 Lux 624m 299m
1 Lux 442m 212m
3 Lux 255m 122m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1LR-750 with Beacon Function
  • x1 Centre Mount (1114k)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
