Mercedes Sprinter (2018+) - Grille Mount Kit

Product Code
#GM-USMSP-01K

From $665.00

To $1,490.00

Mercedes Sprinter (2018+) - Grille Mount Kit   + $105.00
Mercedes Sprinter (2018+) - Grille Mount Kit

In stock

$665.00

For an OE quality, auxiliary LED light bar installation, the Triple-R Grille Integration Kits are custom-fit mounting brackets which allow for quick and easy fitting of Triple-R LED light bars flush mounted within the front grille of a growing number of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting setup remains fully robust and secure.

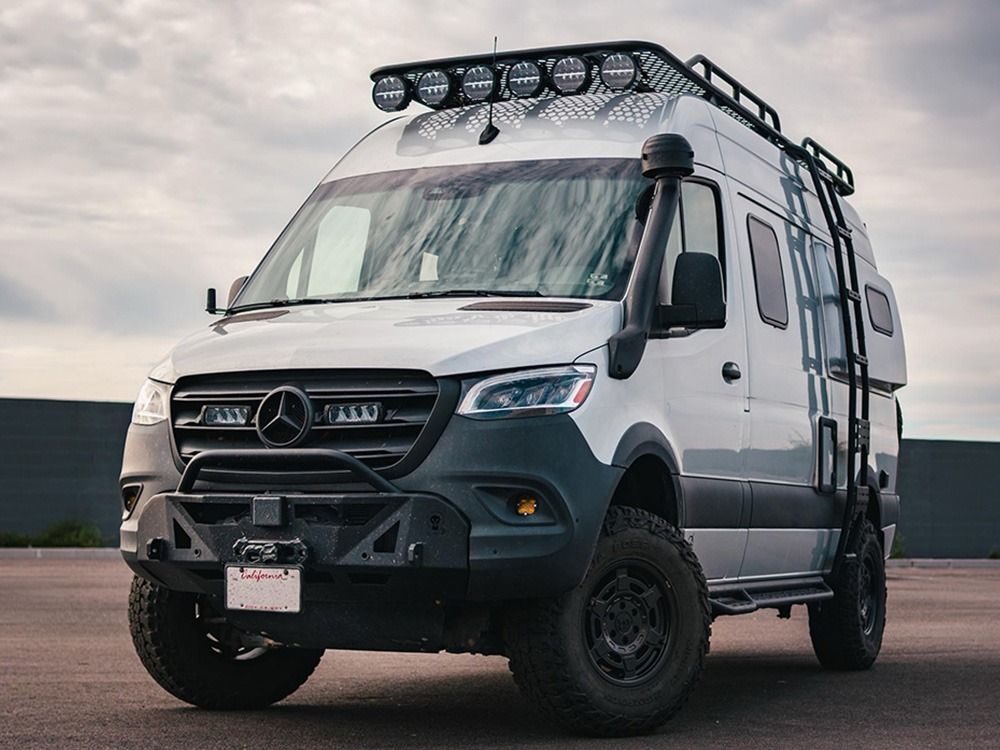

The Mercedes Sprinter (2018+) integration kit is meticulously designed and engineered to fit a pair of LR-750 High Performance LED lights. The 4x mounting brackets are precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year. The fitting is quick and simple and can be completed with the original grille left on the vehicle. Supplied cutting guides facilitate a perfect install every time.

The Mercedes Sprinter (2018+) Grille Integration Kit is carefully engineered and optimised for use with LR-750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Triple-R Lights’ branded products.

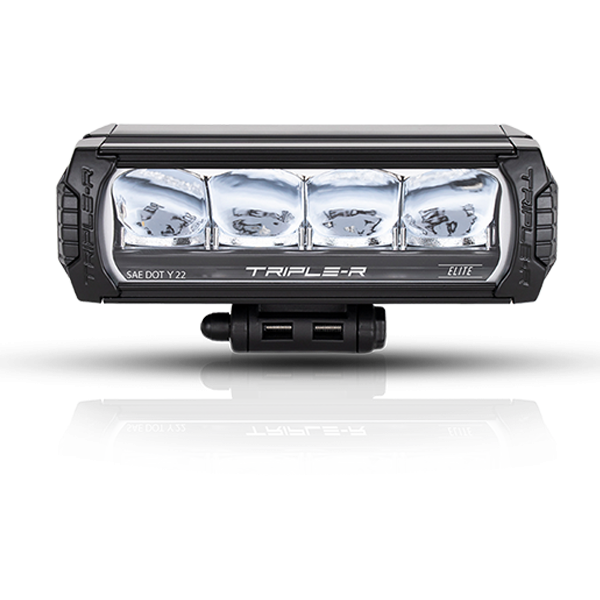

The LR-750 Elite and LR-750 Beacon features dual-output technology. Operating at 100% the light represents the very best output and optimized light distribution for off-road use. Reducing the light output, through removal of the lamps Boost Cap (Elite) or via Flash-to-dim (Beacon), allows the light to operate in DOT compliant mode for use on public highways, dependent on state-specific laws. Please click here more information.

When wiring the LR-750 Elite or LR-750 Beacon direct to the high beams and the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface.




PLEASE NOTE: LIGHTS AND WIRING HARNESS KIT SOLD SEPARATELY.

PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Mercedes Sprinter (2018+) - Grille Mount Kit

Bespoke vehicle integration kit for Triple-R LED light installation

Custom fit for Mercedes Sprinter (2018+)

Designed for use with LR-750 High Performance LED lights

Kits include: 4x brackets, cutting guides, and fasteners

Brackets made from high strength, UV -stable, composite material

5-year warranty

Made in UK

Technical Specifications






2x
LR-750

2x LR-750
BEACON
(BOOST MODE)

2x LR-750
ELITE
(BOOST MODE)


Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours
Weight 5.7 lbs 5.7 lbs 5.7 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm 10800 Lm

10136 Lm

Total Driver 'FOV' Flux † 5572 Lm 2484 Lm 6680 Lm
Colour Temperature 5000K 5000K 5000K
Power Consumption 88 Watts 104 Watts 104 Watts
Current Draw (14.4V) 6.2 Amps 7.4 Amps 7.2 Amps
Connector 3-Pin Superseal
(+25cm Cable)
6-Pin Superseal
(+25cm Cable)
2-Pin Superseal
(+25cm Cable)

CERTIFICATION
IP Rating # IP68 IP68 IP68
Salt Spray Test ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 19° / 18° 28° / 16° 42° / 13°
0.25 Lux 1225m 1249m 1358m
0.5 Lux 866m 883m 960m
1 Lux 612m 624m 679m
3 Lux 354m 361m 392m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x4 Mercedes Sprinter (2018+) Grille Mount Brackets (for LR-750 Lights)
  • x4 Cutting Guides
  • Anti-Theft Screws
  • Fitting Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
