RP Hyperspot

Product Code
#00RP-US-HYP

From $260.00

To $372.00

RP Hyperspot   + $260.00
RP Hyperspot

In stock

$260.00

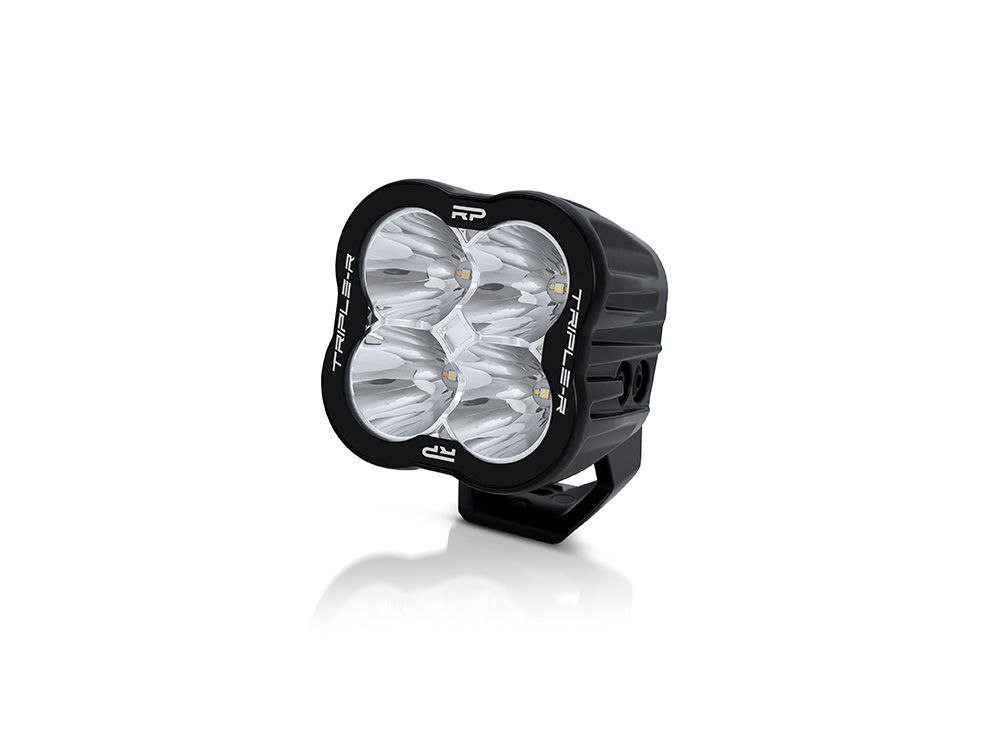

The RP Hyperspot is an ‘off-road’ LED light built for performance and durability. Comprising 4x premium-bin, high-intensity LEDs with an overall power rating of 45W, the lamp produces 4,520 raw lumens which combine with the ultra-reflective, vacuum-metallized ‘boost’ optics specially designed and engineered to deliver light over an impressive distance (1 lux @ 524m). Incorporated within the RP Hyperspot is a backlight feature, with customers having the option to select white or amber colour options.

To compliment and enhance the impressive light output a comprehensive range of clip-on lens covers are available, including yellow and diffuser lenses. A black ‘Triple-R’ branded lens cover is included with each light.

Like all Triple-R Lights products the RP Hyperspot has been designed, engineered, and manufactured in-house, in the UK. The product is built to withstand harsh environments backed up by our comprehensive 5year warranty. Design features including: electronic thermal management, ‘unbreakable’ polycarbonate lens with hardcoat varnish, and a CAE optimised heatsink, mean this is a product to be trusted to deliver for many years.

PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY.



NOT FOR HIGHWAY USE

PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

RP Hyperspot

Utilizing 4 high-intensity LEDs

Vacuum-metallized ‘boost’ optics deliver Hyperspot beam pattern

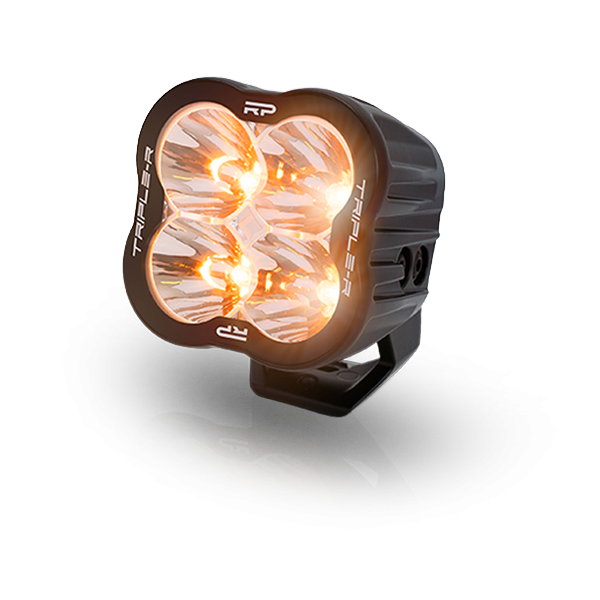

Integrated white/amber backlight function

CAE optimized cooling system with Electronic Thermal Management

5000k color temperature

Comprehensive range of lens covers available

Die-cast, heavy-duty mounting bracket

‘Unbreakable’ polycarbonate lens with hardcoat

Marine grade corrosion resistance

IP68 / IP69k approved

Over voltage protected

Reverse polarity protected

Includes male/female (4-pin) Deutsch connectors

5year warranty

Made in the UK

Technical Specifications
1x RP HYPERSPOT

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 2.4 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 4520 Lm
Total Driver 'FOV' Flux † 3268 Lm
Colour Temperature 5000K
Power Consumption 45 Watts
Peak Current Draw 4.8 Amps
Current Draw (14.4V) 3.1 Amps
Connector 4-Pin Deutsch DT (+20cm Cable)

DIMENSIONS
Width 4.3''
Depth 4.2''
Height 4.3''

CERTIFICATION
IP Rating # IP68
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 10° / 10°
0.25 lx Line 1049m
0.5 lx Line 742m
1 lx Line 524m
3 lx Line 303m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1 RP Hyperspot LED Lamp
  • x1 Lamp Mounting Bracket
  • x1 Black Lens Cover
  • x1 Installation Instructions
