Sentinel 7" Elite (with Backlight)

Rating:
100%
Product Code
#0S7-US-ELITE-PL-SM

From $420.00

To $475.00

Sentinel 7" Elite (with Backlight)   + $420.00
Sentinel 7" Elite (with Backlight)

In stock

$420.00

The Sentinel range of round LED driving lights now comprises 7-inch versions available in Standard and Elite grades. The lights deliver remarkable high beam lighting performance, and product styling that exudes quality.  At the Standard level, a combination of 12 high power LEDs emit 5,208 raw lumens, while at the Elite level 10,248 raw lumens are served up by 24 high power LEDs, with each product having the light output on the road or track ahead maximised through the adoption of class-leading electronics and optical design, alongside the product’s CAE-optimised lamp housing.

Boasting a true ‘combo’ beam pattern, the central rows of LEDs and optics deliver the long-range illumination, while the upper and lower sections have been meticulously designed and engineered to produce an enviable 65 degrees wide spread of light (Elite grade). The result, a perfectly balanced distribution of light, at a carefully selected 5000 kelvin colour temperature, to make night driving a safer and more enjoyable experience. Considering the lamps size and power rating (60W - Standard / 116W – Elite), these lamps outperform on every level, even against significantly larger, more powerful products.

The stealth design of the Sentinel 7” lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. Furthermore, the Elite version has the option to connect white or amber position/side light function, for an even more distinct look. The lamps are supplied with a ‘slim’ diecast aluminium mounting bracket, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black, for a product protected against aesthetic deterioration or corrosion.

As with all Triple-R products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.






PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Sentinel 7" Elite (with Backlight)

Combination of 24 premium ‘bin’ LEDs

Stealth black internal appearance

5000K LED colour temperature and 80CRI maximises sharpness and definition

Integrated white and amber backlight function (Elite only)

Ultra-reflective vacuum-metallised spot and wide optics

Contemporary lamp design

Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

A2 stainless steel fasteners with automotive grade black coating

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

Supplied with pre-wired male/female Superseal connectors

Designed & manufactured in UK

Technical Specifications

Based on: 1x Sentinel 7'' Elite (with Backlight).

Voltage Range (DC) 10-32V
LED Life 50,000 hrs
IP Rating  IP68
Weight 3.3 lb
HIGH BEAM FUNCTION
Total Luminous Flux

10248 Lm

Total Driver 'FOV' Flux † 6380 Lm
Colour Temperature 5000k
Number of High Output LEDs 24
Power Consumption 116 Watts
Current Draw (at 14.4V) 7.6 Amps

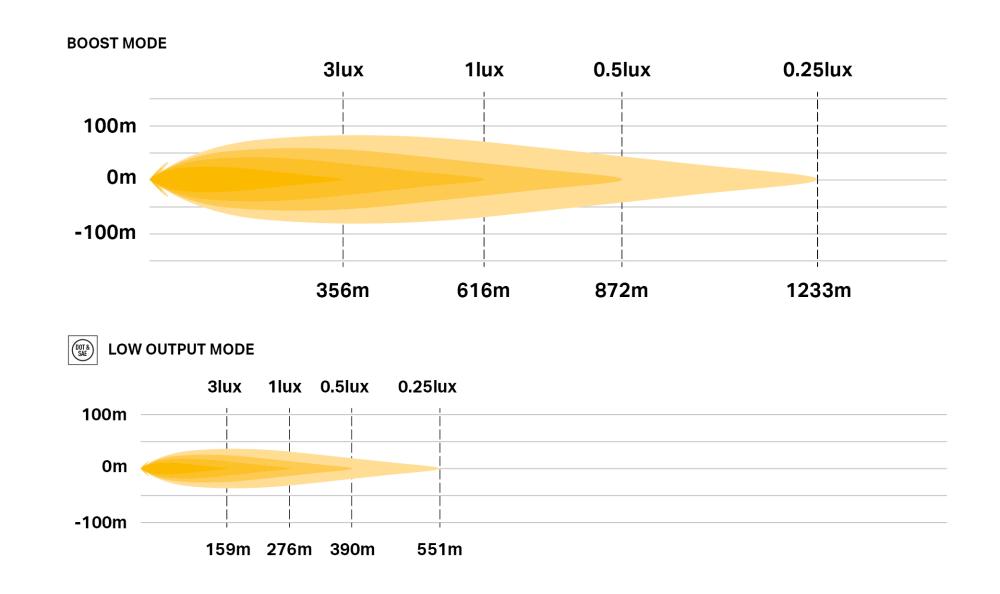

PHOTOMETRIC DATA
Horiz Beam Angle 65 Deg
0.25 lx Line 1233m
0.5 lx Line 872m
1 lx Line 616m
3 lx Line 356m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • x1 Sentinel 7'' Elite LED Lamp
  • x1 'Slim' Mount Kit (1141-0S7-K)
  • x1 Black Lens Cover (LC-0S7-lllR)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
