Sentinel 9'' (with Backlight)

Product Code
#0S9-US-PL-WM

From $420.00

To $475.00

Sentinel 9'' (with Backlight)   + $420.00
Sentinel 9'' (with Backlight)

In stock

$420.00

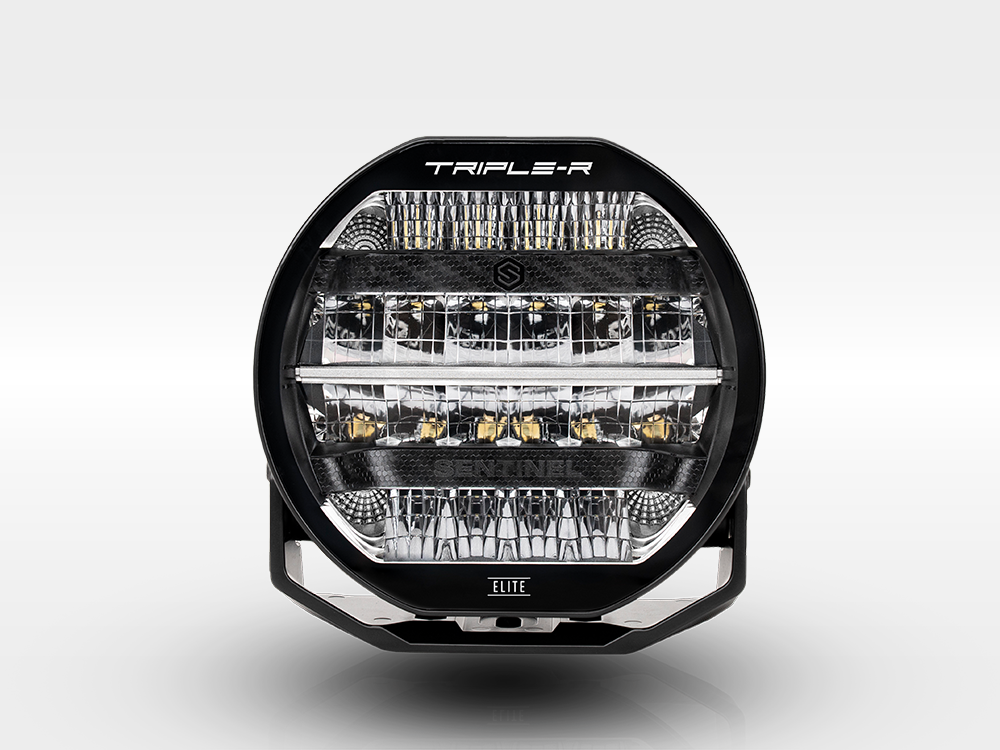

The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Triple-R Lights’ name. Available in Standard or Elite grades, the former incorporates 20 high power LEDs and comes available with a black stealth finish inside the lamp. The Elite product by comparison is only available with the black internal appearance, but with a combination of 32 high power LEDs, represents the very best lighting performance as expected from a product bearing the ‘Elite’ tag.

Sentinel lamps, in the ‘Standard’ range, produce a lighting performance, emitting 9,529 raw lumens, the lamps deliver 1 lux reaching to over 700m; impressive in itself, but considering the 52 degrees horizontal beam angle, this is a product that has been designed to deliver maximum visibility for all manner of road and off-road use. Like all Triple-R products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead.

The stealth design of the black Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. Conversely the chrome variant of the lamp utilises white PCBs, coupled with chrome bezel feature for a striking appearance sure to get noticed for all the right reasons. Both versions have the option to connect white or amber back/side light function, for an even more distinct look.

The lamps are supplied with a ‘wide’ diecast aluminium mounting bracket, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black, for a product protected against aesthetic deterioration or corrosion. An alternative ‘slim’ mounting bracket, along with a range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories.

As with all Triple-R products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.

PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY.



NOT FOR HIGHWAY USE






PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Sentinel 9'' (with Backlight)

Combination of 20 premium ‘bin’ LEDs

Black or Chrome internal appearance available

5000K LED colour temperature and 80CRI maximises sharpness and definition

Integrated white and amber back light function

Ultra-reflective vacuum-metallised spot and wide optics

Contemporary lamp design

Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

A2 stainless steel fasteners with automotive grade black coating

UNECE approved Reg 10

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

Supplied with pre-wired male/female 3-pin Superseal connectors

Designed & manufactured in UK

Technical Specifications

Based on 1x Sentinel 9''.

Voltage Range (DC) 10-32V
LED Life 50,000 hrs
IP Rating IP68
Weight 2.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux

9520 Lm

Total Driver 'FOV' Flux † 5588 Lm
Colour Temperature 5000k
Number of High Output LEDs 20
Power Consumption 87 Watts
Peak Current Draw (10v) 8.1 Amps
Current Draw (at 14.4V) 6 Amps
PHOTOMETRIC DATA
Horiz Beam Angle 52 Deg
0.25 lx Line 1414 metres
0.5 lx Line 1000 metres
1 lx Line 707 metres
3 lx Line 408 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 1x Sentinel 9'' LED Light
  • 1x Wide Mount (1141K)
  • 1x Black Lens Cover
  • 1x Fitting Instructions
