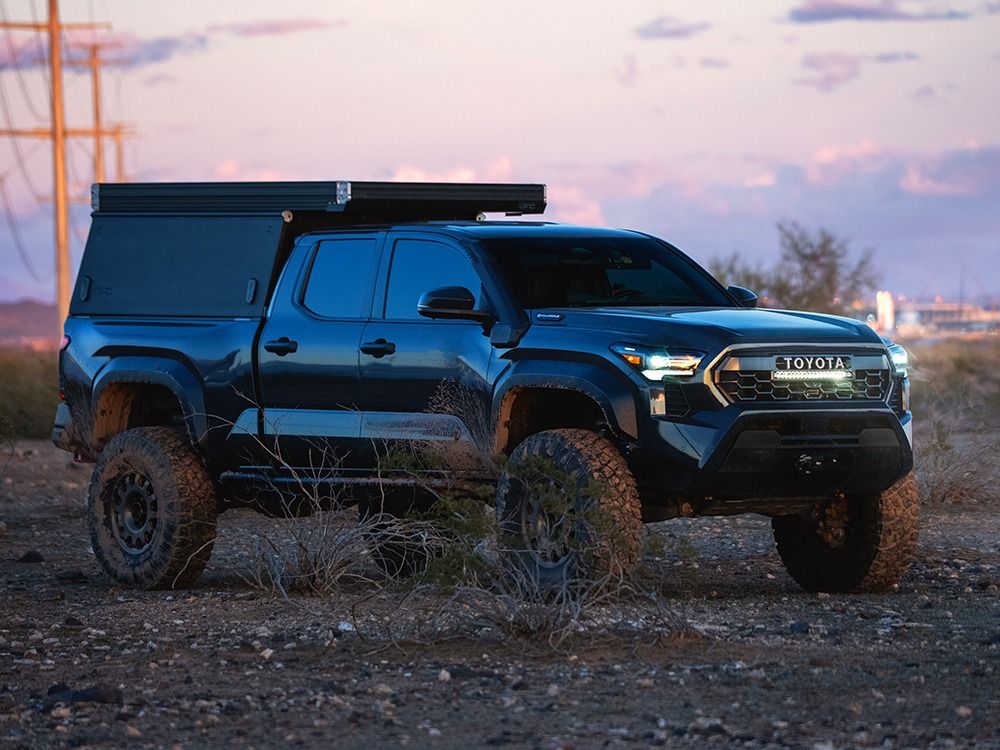

Toyota Tacoma TRD Pro (2024+) Grille Kit

Bespoke vehicle integration kit for Triple-R Lights LED light bar installation

Custom fit for Toyota Tacoma TRD (2024+)

Also compatible with Toyota Tacoma Trailhunter 2024

Available with: Linear-18 High Performance LED lightbar (Elite, Elite i-LBA or Elite+)

Kit also includes bespoke mounting brackets and one-lamp wiring kit

Cutting guides included

Brackets made from high strength, UV -stable, composite material

5-year warranty

Designed & manufactured in UK

Technical Specifications


LINEAR-18
ELITE

LINEAR-18
ELITE+
(Boost / Low Output Mode)

LINEAR-18
ELITE i-LBA


Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours
Weight 2.4 lbs 2.4 lbs 2.4 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 12150 Lm 14850 / 4455 Lm 18,000 Lm
Total Driver 'FOV' Flux † 8651 Lm 10573 / 3172 Lm 12,816 Lm
Colour Temperature 5000K 5000K 5000K
Power Consumption 126 Watts 134 / 39 Watts 135 Watts
Current Draw (14.4V) 8.8 Amps 9.9 / 2.7 Amps 15 Amps
Connector 2-Pin Superseal
(+25cm Cable)
3-Pin Aptiv
(+25cm Cable)
4-Pin Deutsch DT
(+25cm Cable)

CERTIFICATION
IP Rating # IP68 IP68 IP68
EMC Certification ECE R10 ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 64° / 15° 84° / 20° 60° / 20°
0.25 lx Line 975m 1152m / 694m 1043m
0.5 lx Line 690m 815m / 491m 738m
1 lx Line 488m 576m / 347m 522m
3 lx Line 282m 333m / 200m 301m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included

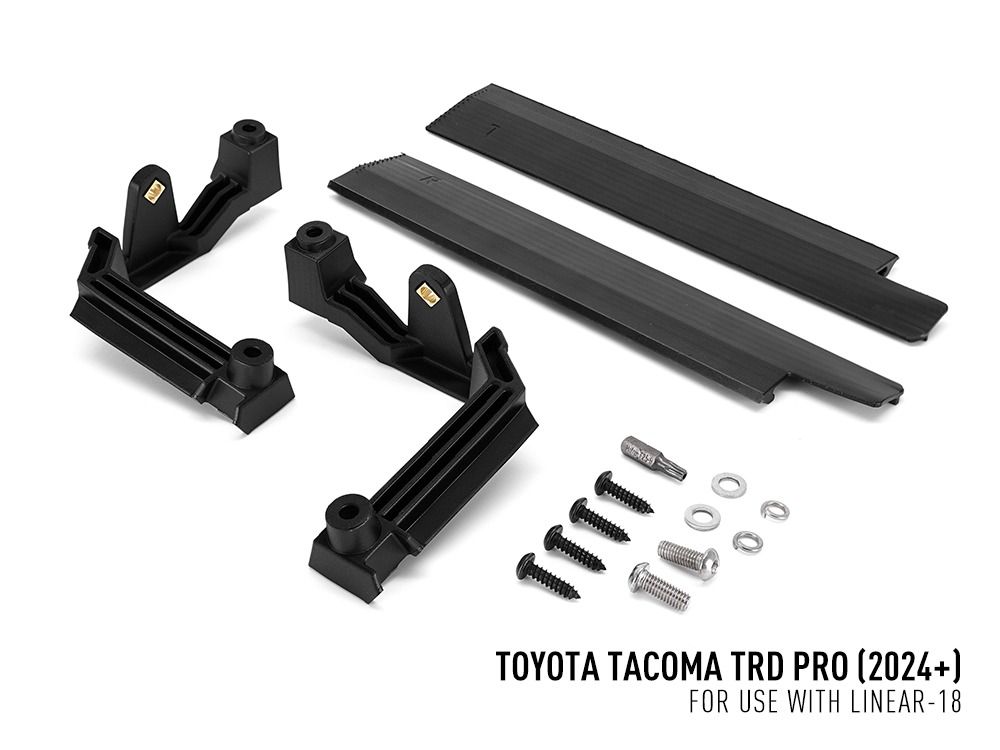

  • x1 Grille Mount Kit (includes cutting guides)
  • x1 Linear-18 LED Light bar
  • x1 One-Lamp Wiring Kit
  • Fitting Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
Write Your Own Review
You're reviewing:Toyota Tacoma TRD Pro (2024+) Grille Kit
Your Rating

Toyota Tacoma TRD Pro (2024+) Grille Kit

Product Code
#USTAC-03

From US$715.00

To US$960.00

Toyota Tacoma TRD Pro (2024+) Grille Kit

In stock

Find a
Stockist

US$715.00

For an OE-quality auxiliary lightbar installation, the Triple-R Grille Integration Kits include custom-designed mounting brackets that facilitate the quick and seamless fitting of Triple-R Lights’ High Performance LED lightbars into the front grilles of popular road cars, pick-up trucks, and light commercial vehicles. Crafted to complement each vehicle's original styling, the integrated setup is robust, secure, and features added anti-theft protection.

The Toyota Tacoma TRD Pro (2024+) Grille Integration Kit features a Linear-18 (Elite, Elite+ or Elite i-LBA) High Performance LED lightbar, along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard centre grille. For added durability and reinforcement, the kit includes self-tapping (plastic) screws for extra hold.

Constructed from a robust composite material renowned for its exceptional strength and UV resistance, the brackets are designed to withstand harsh weather conditions and chemicals, ensuring long-lasting performance. Additionally, the kit comes with precise cutting guides that simplify the installation process, delivering a perfect fit every time—no need to remove grille or bumper components.

The Toyota Tacoma TRD Pro (2024+) Grille Integration Kit is carefully tailored and optimised for seamless compatibility with the Linear-18 LED lightbars. Our warranty does not cover grille mounts which are fitted with non-Triple-R Lights’ branded products.

PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.
