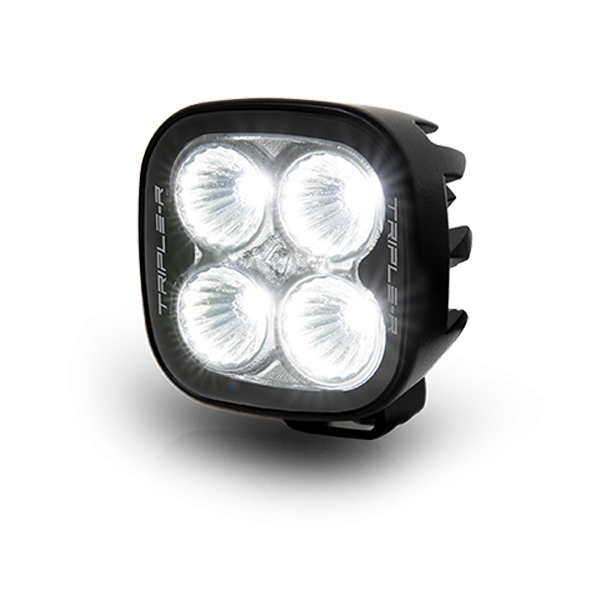

Utility-25

Product Code
#00U25-US-B

From $115.00

To $160.00

Utility-25   + $115.00
Utility-25

In stock

$115.00

The Utility-25 is a hugely versatile, medium-duty work light, which through the latest advances in LED lighting technology, gives superior levels of light output considering its compact size. The lamp is built tough and engineered to deliver constant, reliable light output perfectly tuned to a broad range of applications and vehicle types.

Measuring 3.15" x 3.15" and capable of operating between 10-32V, the Utility-25 utilises highly efficient 6W LEDs from a world-leader in LED design and manufacture. Like all Triple-R products, the color temperature of the LEDs is carefully selected at 5000 kelvin to maximise sharpness and definition of the area ahead, without causing fatigue or strain which can come from using LEDs with a higher colour range. The vacuum-metallized optics harness the 3,016 raw lumens delivering 78 degree spread (to 10% of peak intensity). The impressive lighting performance is maintained through the high thermal conductivity of the ‘Matrix’ cooling system which allows the lamp to be run at a higher drive current without compromising the longevity of the LEDs themselves.

Designed and manufactured in the UK, the Utility-25 is a product built to last, and to withstand harsh environments, backed up by a comprehensive 5yr warranty*. The polycarbonate lens with hardcoat, is bonded in place to guarantee water-tightness (IP69K), while the lamps have undergone extensive testing to comply with regulations in relation to vibration, shock, and corrosion resistance. Advanced electronic design ensures full EMC protection to CISPR-25 (Class 5†) standards.

Supplied with male/female Deutsch connectors (part no. DT06-2S/DT04-2P), the Utility-25 also comes supplied with a satin black-painted stainless-steel mounting system, which allows flexibility in mounting the light in many different orientations.

PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY.



* - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.



NOT FOR HIGHWAY USE






PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Utility-25

UNECE approved Work Light (Reg 10)

High density, premium ‘bin’ LEDs

Advanced optical design delivers superior lighting performance

CAE optimized 'Matrix' cooling system offers improved thermal dynamics

Electronic thermal management system optimizes light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

EMC protected - CISPR 25: 2008 (Class 5)

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

IP67 watertight

5-year warranty*

Supplied with pre-wired male/female 2-pin Deutsch connectors

Designed and manufactured in UK

† - CISPR-25 (Class 5) applies to 12V usage only unless specified.

* -5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.

Technical Specifications
  1x Utility-25
Voltage Range (DC) 10-32V
LED Life 50,000 hours
Colour Temperature 5,000 Kelvin
Weight 360 gr
HIGH BEAM FUNCTION
Total Luminous Flux 3016 Lm
Colour Temperature 5000K
Power Consumption 25 Watts
Current Draw (at 14.4V) 1.6 Amps
Connector 2-Pin Deutsch DT (+28cm Cable)
CERTIFICATION
IP Rating # IP68 / IP69K
EMC Standard ECE R10
EMC Protection CISPR-25
(Class 5)
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2
OPERATING CONDITIONS
Operating Temperature -40deg C ... +90degC
Vibration (BS EN 60068-2-64) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz

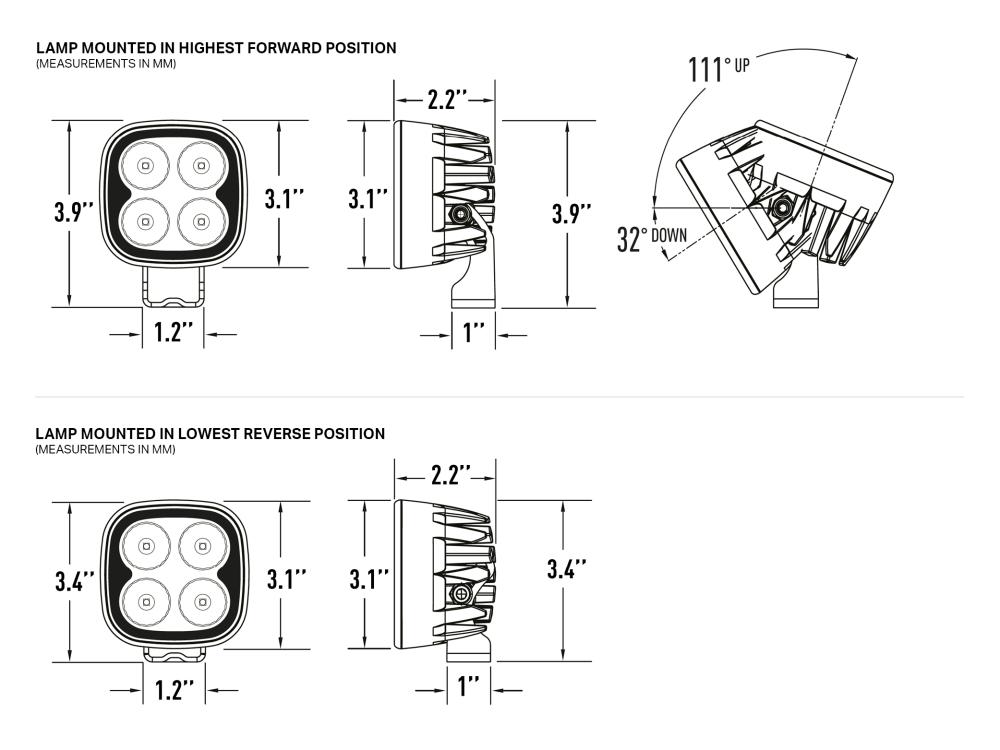

DIMENSIONS
Width 80 mm
Depth 56 mm
Height 80 mm
PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 78o / 78o
1 Lux 57m
5 Lux 25m
20 Lux 13m
50 Lux * 8m



* - 50Lx represents HSE guidelines for effective illumination when working outdoors at night.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1 Utility-25 LED Work Lamp
  • x1 Mounting Bracket
