Volvo V60/S60 (2018+) Bumper Beam Mounting Kit

Product Code
#VIFK-V60-01K-US

From $28.00

To $873.00

Volvo V60/S60 (2018+) Bumper Beam Mounting Kit   + $28.00
Volvo V60/S60 (2018+) Bumper Beam Mounting Kit

In stock

$28.00

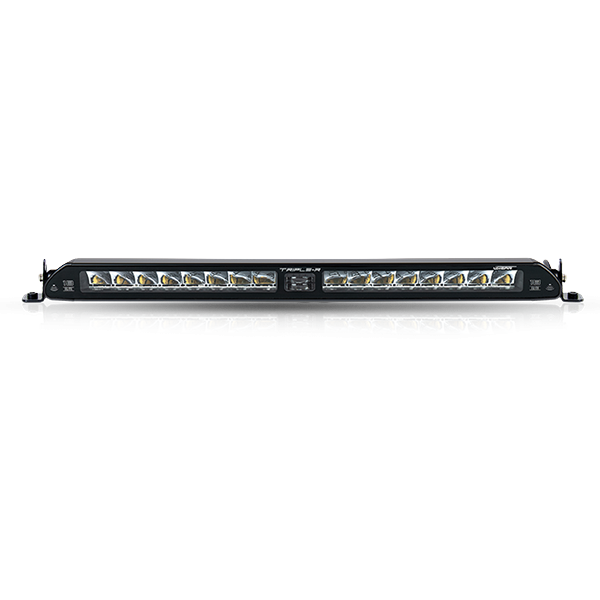

Utilising satin black mounting brackets concealed behind the lower grille, the Triple-R Lights’ vehicle integration kit for the Volvo V60/S60 (2018-2023), allows for mounting of our class-leading Linear-18 (Elite, Elite+ or Elite with i-LBA) high performance LED lightbar, for an auxiliary LED driving light installation that impresses day and night. The slimline design and high-end styling of the Linear-18 blends seamlessly into the front-end of the vehicle for an understated integration, albeit one that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday road and off-road use.

The mounting of the light is quick and simple utilising our side mounting brackets made from folded aluminium, that are finished with a satin black powder coat. The mounts mount directly to the bumper beam bar for a subtle installation behind the lower grille, secured using supplied rivets. The resulting setup is secure and robust, with the added extra security of the light being mounted behind the grille. Like all lighting products from Triple-R Lights, the Linear-18's are designed, engineered, and manufactured in the UK, backed up by our comprehensive 5 year warranty. With no compromises in component parts or production techniques, your installation will stay looking in great shape year-after-year.



LIGHTS AND WIRING SOLD SEPARATELY.
(Please note - One-Lamp Harness Kit included with the following lamps: Linear-18 Elite with i-LBA and Linear-18 Elite+)



PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Volvo V60/S60 (2018+) Bumper Beam Mounting Kit

Auxiliary lightbar installation for Volvo V60/S60 (2018+)

Compatible with Linear-18 Elite, Elite+ or Elite with i-LBA

Fully robust and secure, with extra protection against theft

Vehicle wiring kits available

5-year warranty

Made in Britain

Technical Specifications
  1x Linear-18 Elite

1x Linear-18 Elite+
(Boost / Low Output Mode)

1x Linear-18 Elite with
i-LBA

Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours
Weight 2.4 lbs 2.4 lbs 2.4 lbs
HIGH BEAM FUNCTION
Total Luminous Flux 13,500 Lm 14850 / 4455 Lm 18,000 Lm
Total Driver 'FOV' Flux † 9,612 Lm 10573 / 3172 Lm 12,816 Lm
Colour Temperature 5000K 5000K 5000K
Number of High Output LEDs 36 36 48
Power Consumption 130 Watts 134 W / 39 W 135 Watts
Current Draw (at 14.4V) 9 Amps 9.9 A / 2.7 A 15 Amps
PHOTOMETRIC DATA
Horizontal Beam Angle 64° 84o 60°
0.25 lx Line 1023m  1152m / 694m 1043m
0.5 lx Line 723m  815m / 491m 738m
1 lx Line 511m 576m / 347m 522m
3 lx Line 295m 333m / 200m 301m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 2x Mounting Brackets
  • Fixtures

Fitting instructions available in the downloads section below.
