Air-90 Beacon
Air-90 Beacon Air-90 Beacon Air-90 Beacon Air-90 Beacon Air-90 Beacon Air-90 Beacon Air-90 Beacon

Air-90 Beacon

Product Code
#0A90-US-STRB-B

From US$545.00

To US$695.00

1. Lighting Options *

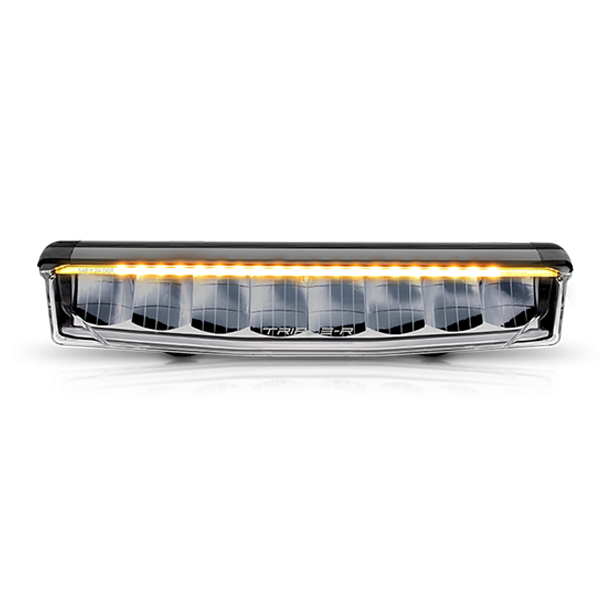

Air-90 Beacon

In stock

Find a Stockist

US$545.00

PAYMENT & DELIVERY
Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.

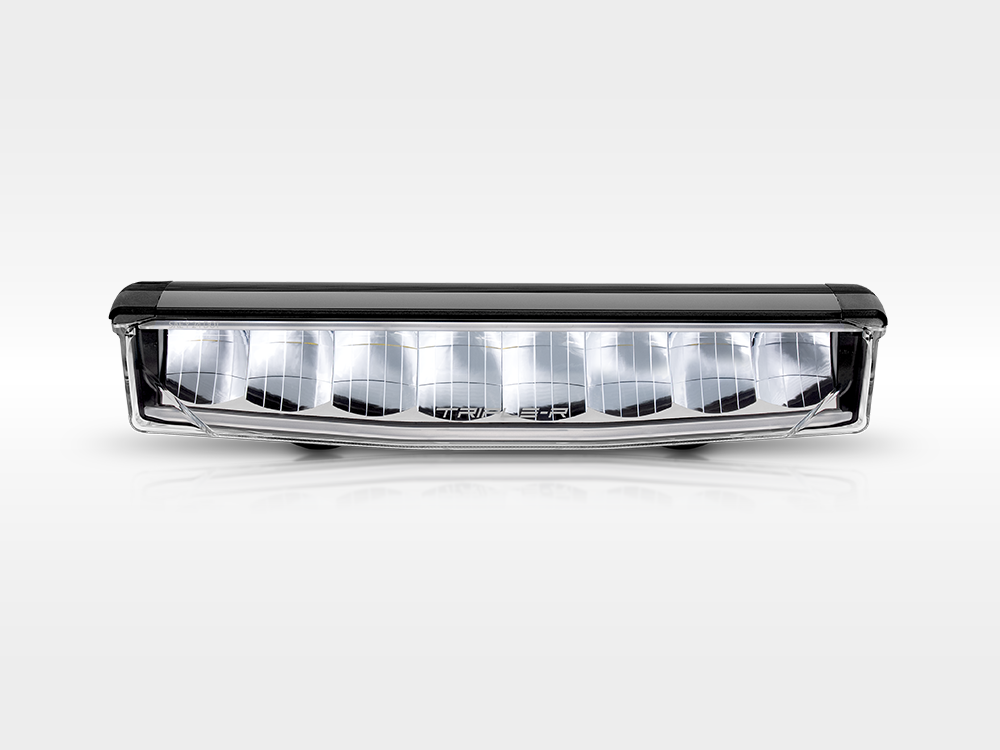

When your vehicle represents you and your business, it deserves nothing but the best! Introducing the AIR-90, Triple-R Lights’ latest LED light bar, specifically designed and engineered for professional and commercial use. Every aspect of the AIR-90 has been meticulously crafted through our in-house design, engineering, and manufacturing processes in the UK, delivering a high-performance LED lighting solution with striking design, enhanced by a monocoque lens construction and a signature position light feature. As with any Triple-R product, the lighting performance and build quality are absolutely assured.

The AIR-90, comparable in lighting performance to the industry-leading LR-1000, offers the perfect balance of performance and value. Backed by a comprehensive 5-year warranty, it delivers 9,160 raw lumens and provides 1 lux at 574 meters, making it a versatile, all-around solution for everyday use. The light’s distribution has been carefully engineered to optimize vertical and horizontal spread, ensuring exceptional performance for road use—even from higher mounting positions. Its dual-output functionality allows the light’s output to be adjusted to meet specific needs or preferences.

Beyond its impressive high beam capabilities, the AIR-90 features an integrated dual white or amber position light, and Flashing beacon Function. In addition to the safety benefits, the use of advanced technologies and materials creates a distinctive signature look, whether seen up close or from a distance.

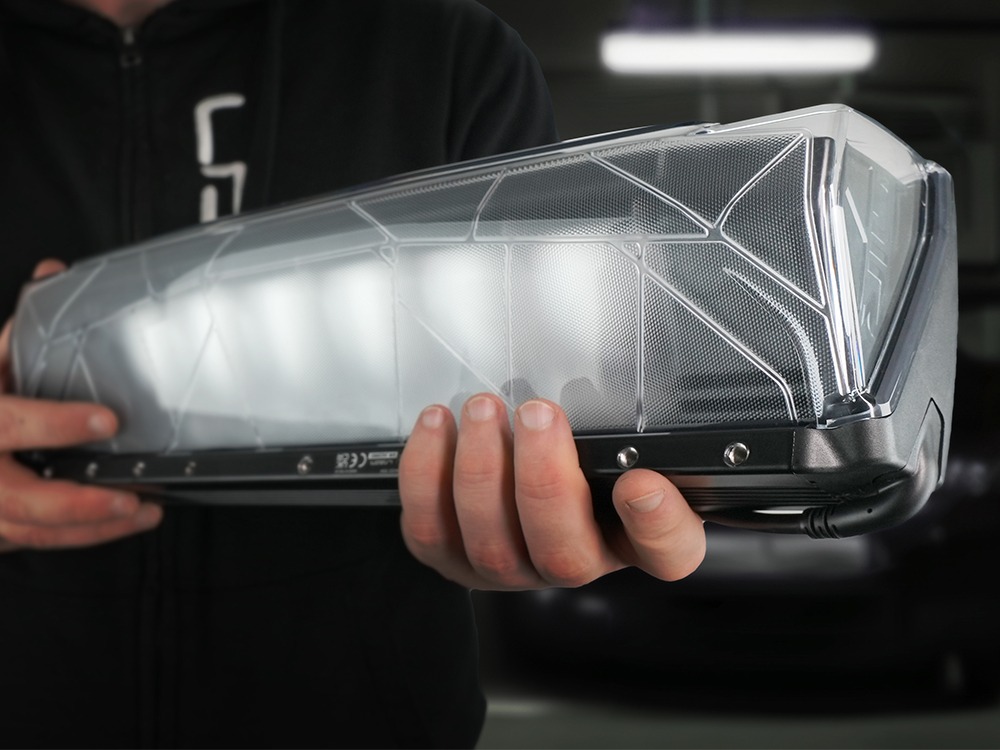

The styling and build quality of the AIR-90 are further elevated by the injection-molded monocoque polycarbonate lens. This "unbreakable" lens, which comes with a lifetime guarantee, is finished with a hardcoat lacquer for added durability—an example of the advanced in-house manufacturing processes at Triple-R Lights. The lens flows seamlessly under the lamp, featuring a textured underside for added style. The included Center Mount system allows for a sleek, low-profile installation by positioning the light lower in relation to the mounting point.

Like all Triple-R high-performance lights, the AIR-90 is designed, engineered, and manufactured in-house at our UK facility. With exceptional product design, superior illumination performance, and the assurance of a 5-year warranty, the AIR-90 redefines high-performance lighting solutions for professional and commercial applications.

The AIR-90 features dual-output technology. Operating at 100% the light represents the very best output and optimized light distribution for off-road use. Reducing the light output, through removal of a 'Boost Cap' fixed to the back of the light, allows the light to operate in DOT compliant mode for use on public highways, dependent on state-specific laws.

Patent-pending injection moulded monocoque lens with texture effect to the underside

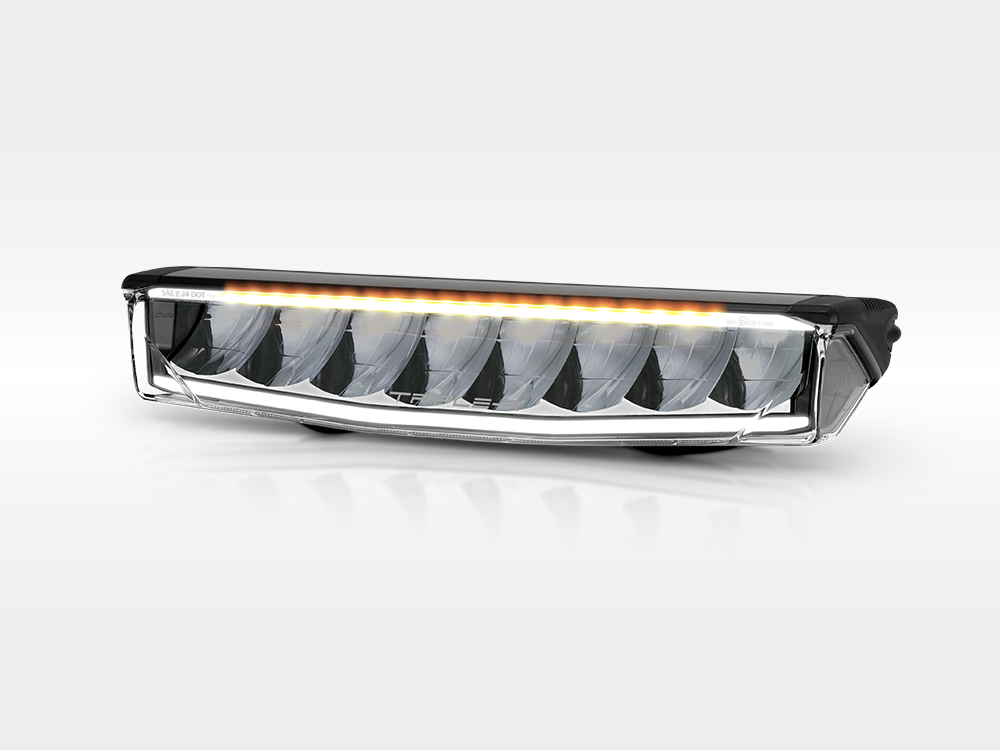

Integrated white or amber backlight guides

Adoption of the latest high-efficiency premium-bin LEDs

Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road

Patent-pending lamp design

Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point.

Threaded mounting locations to enable side mounting (brackets sold separately)

CAE optimised heatsink offers improved thermal dynamics

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management

‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee

20cm lamp cable complete with male/female 3-pin Superseal connectors

IP68 watertight

5-year warranty

Vehicle wiring kits available

Designed & manufactured in Britain

AIR-90 BOOST MODE LOW OUTPUT MODE
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight3.6 lbs
HIGH BEAM FUNCTION
Total Luminous Flux9,160 Lm2,290 Lm
Total Driver 'FOV' Flux 6,229 Lm1,557 Lm
Colour Temperature5000K5000K
Power Consumption90 Watts14 Watts
Current Draw (14.4V)7.1 Amps1 Amp
Peak Current Draw8.5 Amps1.3 Amps
Connector3-Pin Superseal (+25cm Cable)
CERTIFICATION
IP Rating #IP68
High BeamDOT / SAE J581 (in Low Output Mode only)
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

- Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Triple-R Lights' products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

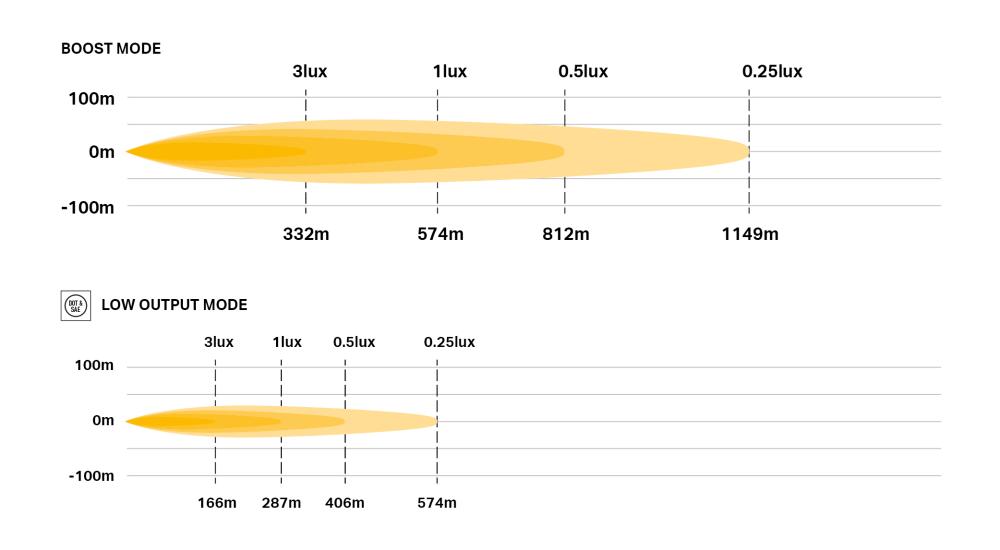

PHOTOMETRIC DATA BOOST MODE LOW OUTPUT MODE
0.25 lx Line1149 metres574 metres
0.5 lx Line812 metres406 metres
1 lx Line574 metres287 metres
3 lx Line332 metres166 metres
AIR-90 photometric diagram

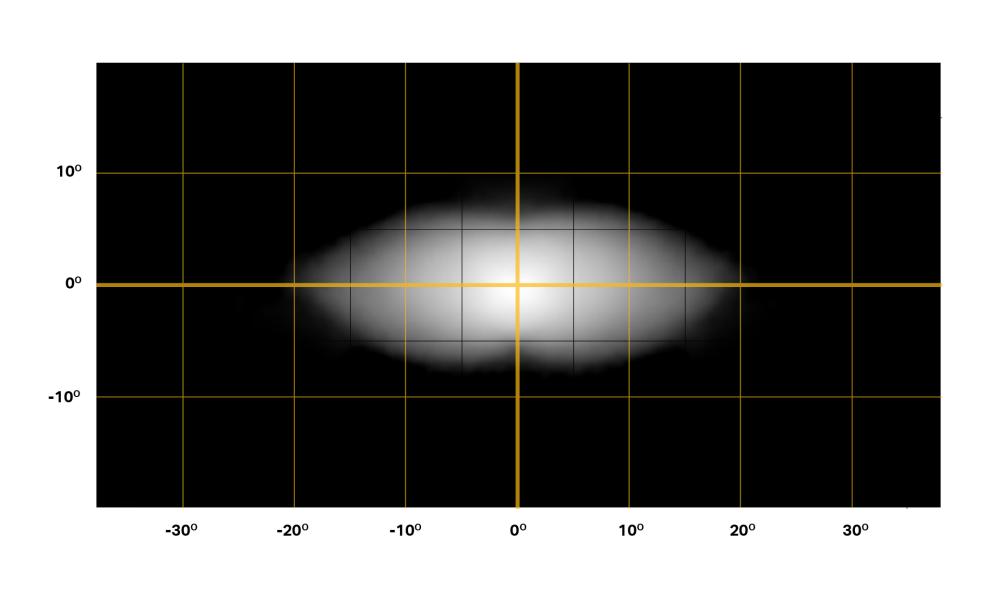

BEAM DISTRIBUTION
Horizontal34 degrees
Vertical13 degrees
AIR-90 beam distribution

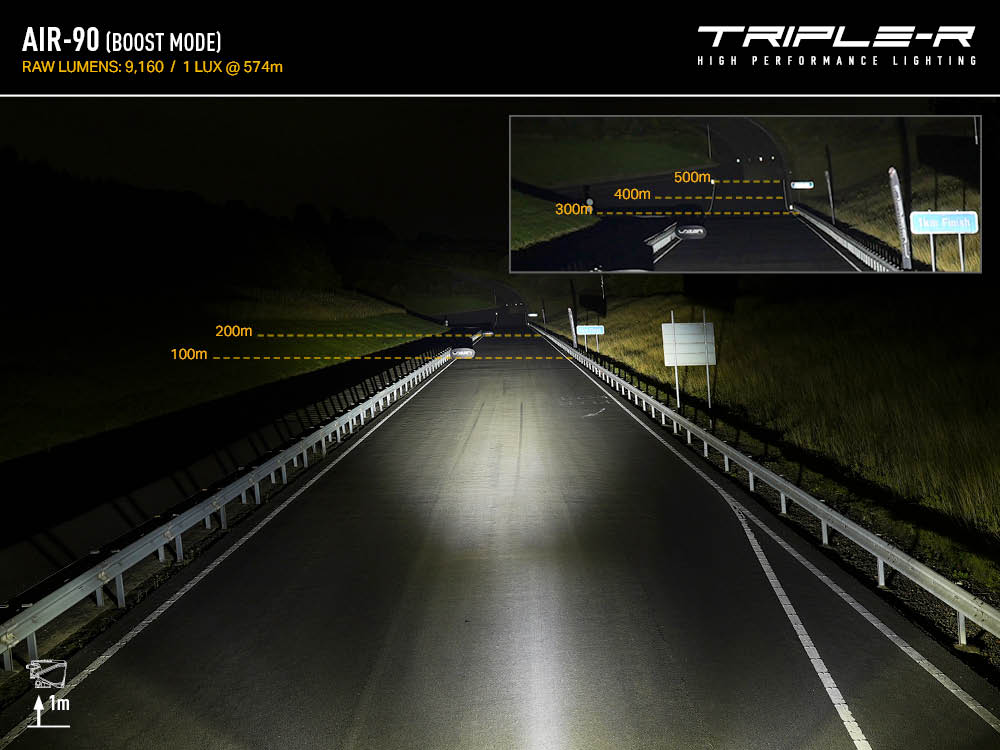

AIR-90 Beam Photo

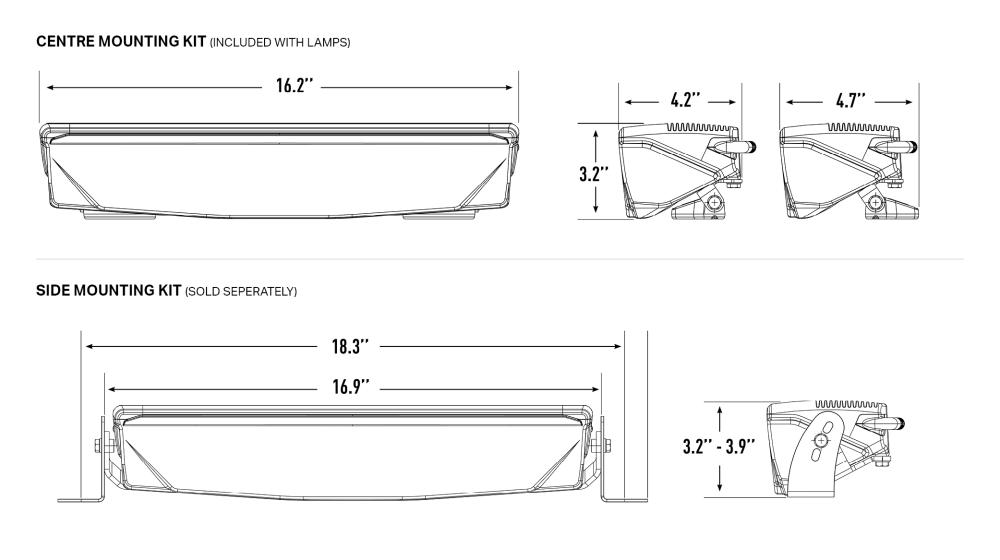

DIMENSIONS
Width16.2''
Depth4.2''
Height3.2''
AIR-90 dimensions diagram
  • x1 AIR-90 LED Lamp
  • x2 Centre Mounting Kit (1151K)
  • Installation Instructions
