FORD BRONCO/RAPTOR (2021+) MODULAR BUMPER MOUNTING KIT

Compatible with Ford Bronco / Bronco Raptor (2021) with the Ford Performance Heavy-Duty Modular Bumper

Mounting brackets made from mild steel

Pre-treated for maximum corrosion resistance, with satin black powder coat

A2 stainless steel hardware included

Compatible with Linear-24 Elite

Technical Specifications

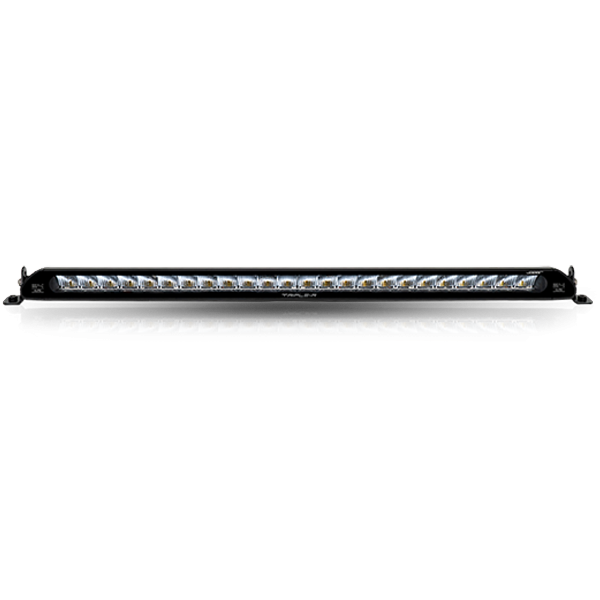

1x LINEAR-24 ELITE

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 4.4 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 18,000 Lm
Total Driver 'FOV' Flux † 12,815 Lm
Colour Temperature 5000K
Power Consumption 188 Watts
Peak Current Draw 18.8 Amps
Current Draw (14.4V) 13.1 Amps
Connector 2-Pin Superseal (+25cm Cable)

DIMENSIONS
Width 26.9''
Depth 2.44''
Height 1.57''

CERTIFICATION
IP Rating # IP68
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 64° / 15°
0.25 lx Line 1126m
0.5 lx Line 796m
1 lx Line 563m
3 lx Line 325m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

Videos
Write Your Own Review
You're reviewing:FORD BRONCO/RAPTOR (2021+) MODULAR BUMPER MOUNTING KIT
Your Rating

FORD BRONCO/RAPTOR (2021+) MODULAR BUMPER MOUNTING KIT

Product Code
#1126-ALT-K-US

From US$17.00

To US$997.00

Linear Side Bracket Kit (Alternative Version)   + US$17.00
FORD BRONCO/RAPTOR (2021+) MODULAR BUMPER MOUNTING KIT

In stock

US$17.00

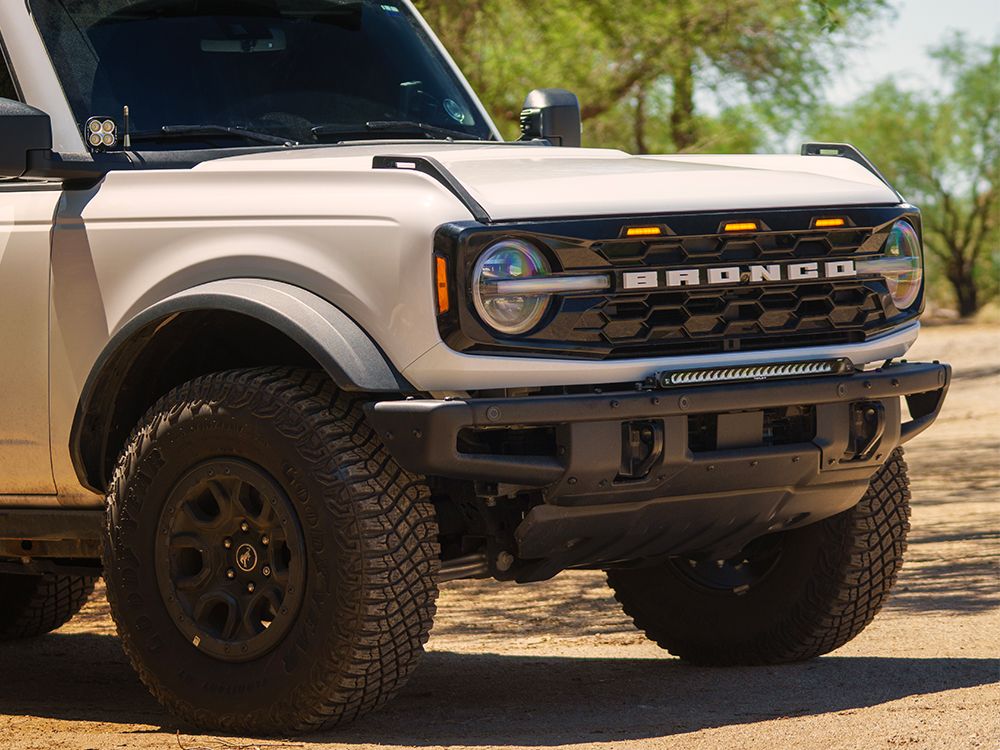

Looking for a quick, simple LED light bar install for your Ford Bronco/Raptor, that delivers sleek styling combined with incredible levels of illumination, then our Linear-24 Modular Bumper Mount Kit simply can’t be beaten.

Utilising the factory bolt holes on the Bronco Heavy Duty Ford Performance Modular Bumper, the Linear-24 Elite LED light bar fits in place effortlessly with specially engineered mounting brackets that provide for an ultra low-profile install. The brackets themselves are pre-treated for maximum corrosion resistance, then powder coated black for a sleek finish, and include black A2 stainless steel hardware.

LIGHTS AND WIRING SOLD SEPARATELY.
