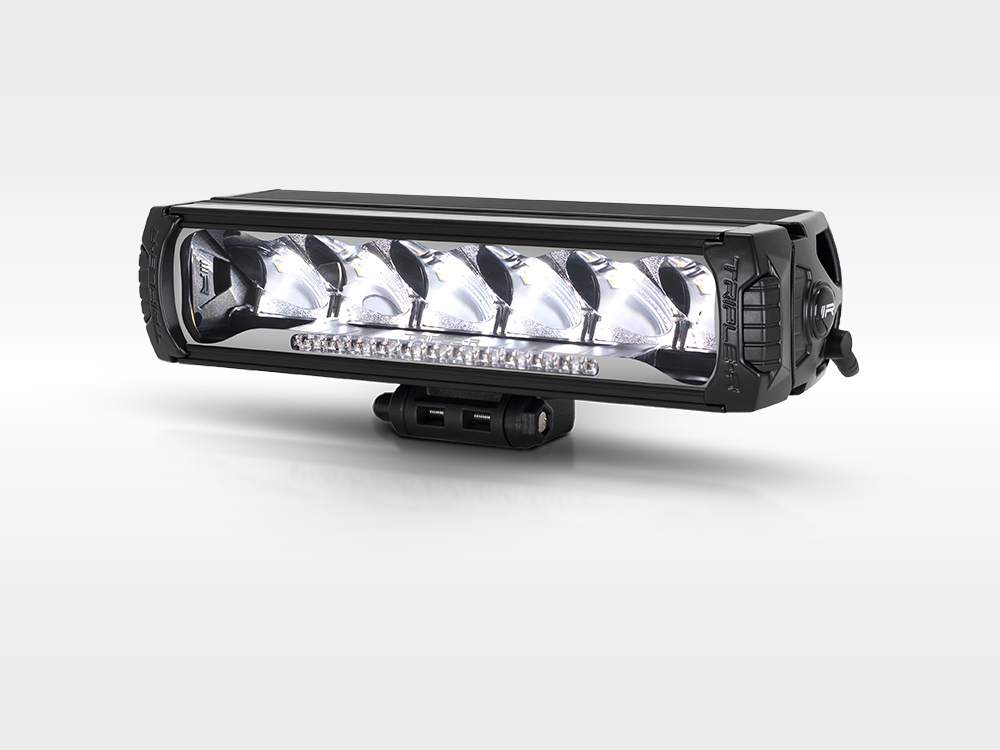

LR-850 Beacon

High density, premium-bin 11W LED technology

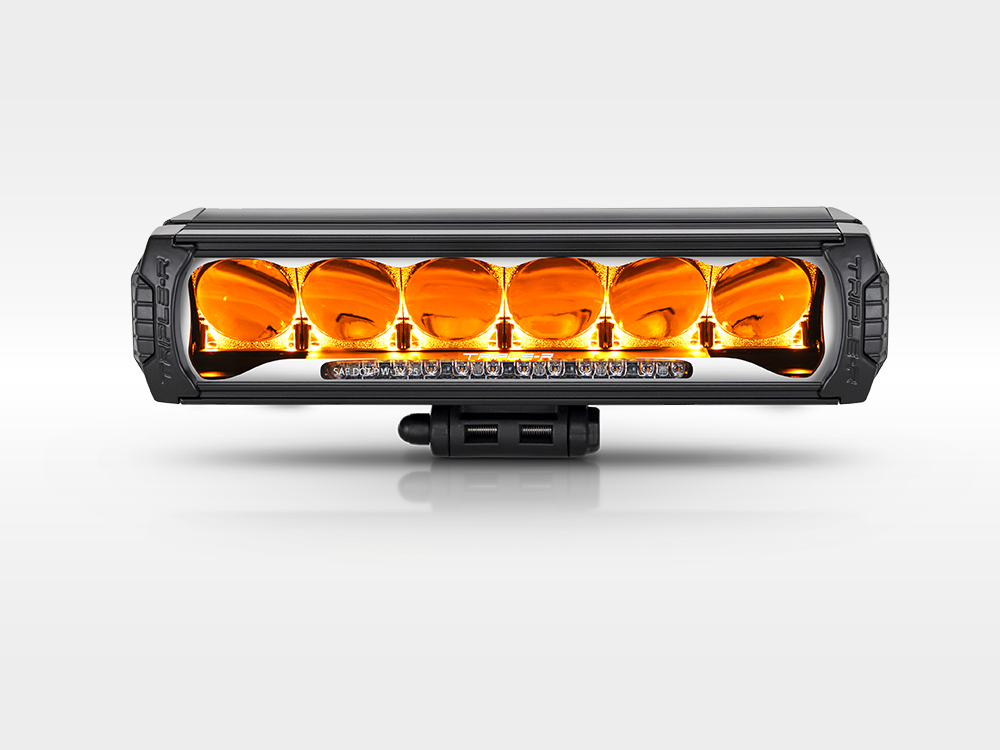

Integrated white or amber backlight function

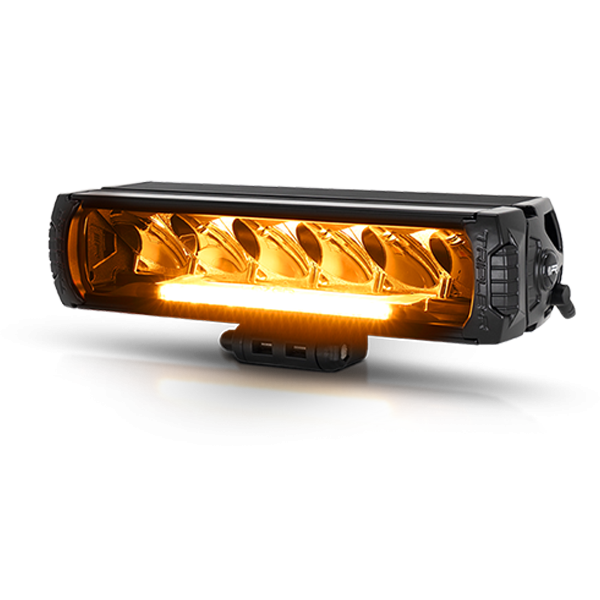

Integrated amber flashing beacon function (DOT/SAE compliant – W-1)

DOT / SAE J581 Compliant (in Low Output Mode only)

Ultra-reflective vacuum-metallised optics deliver spot beam pattern

Contemporary lamp design

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

CAE optimised heatsink offers improved thermal dynamics

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management

‘Unbreakable’ and hardcoated polycarbonate lens

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

Supplied with pre-wired male/female 6-pin Superseal connectors

Designed & manufactured in UK

Technical Specifications
1x LR-850 BEACON

BOOST
MODE

LOW OUTPUT
(DOT/SAE Compliant)


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 2.9 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 6930 Lm 1386m
Total Driver 'FOV' Flux † 3970 Lm 790m
Colour Temperature 5000K
Power Consumption 66 Watts 13.2 Watts
Current Draw (14.4V) 4.6 Amps 0.9 Amp
Connector 6-Pin Superseal (+25cm Cable)

DIMENSIONS
Width 12.7''
Depth 4.06''
Height 2.87''

CERTIFICATION
IP Rating # IP68
High Beam DOT / SAE J581 (in Low Output Mode only)
Warning Light DOT / SAE (Class 1 Warning Light)
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 28° / 16°
0.25 Lux 306m 137m
0.5 Lux 530m 237m
1 Lux 750m 335m
3 Lux 1061m 474m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1LR-850 with Beacon Function
  • x1 Centre Mount (1114k)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
Write Your Own Review
You're reviewing:LR-850 Beacon
Your Rating

LR-850 Beacon

Product Code
#LR6-BCN-B

From US$515.00

To US$665.00

LR-850 Beacon   + US$515.00
LR-850 Beacon

In stock

Find a
Stockist

US$515.00

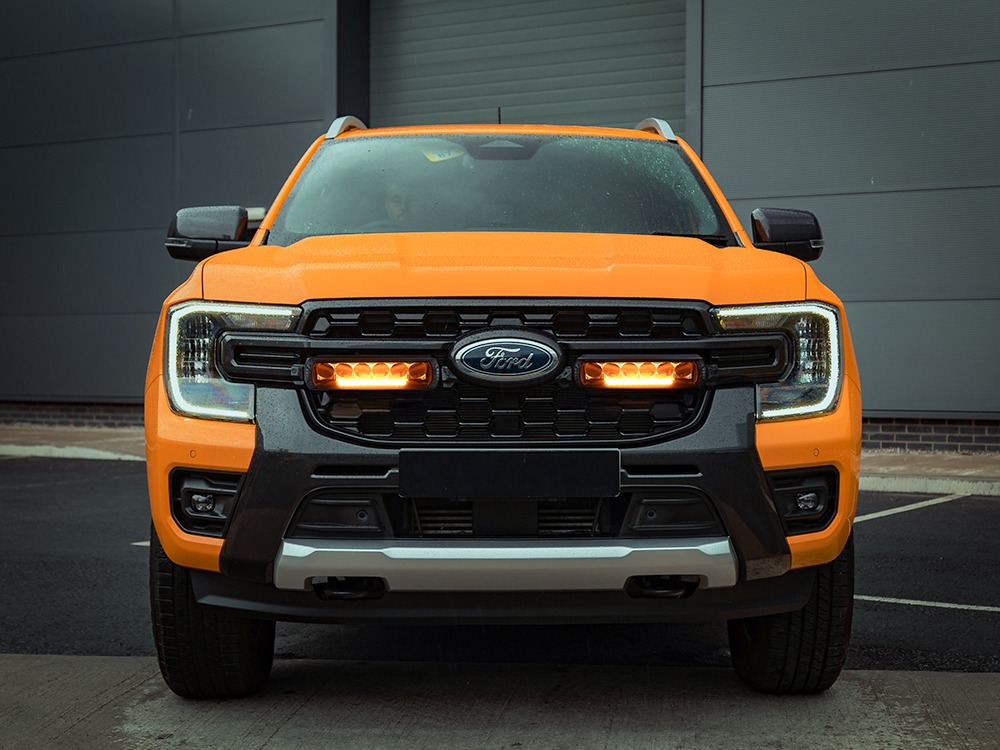

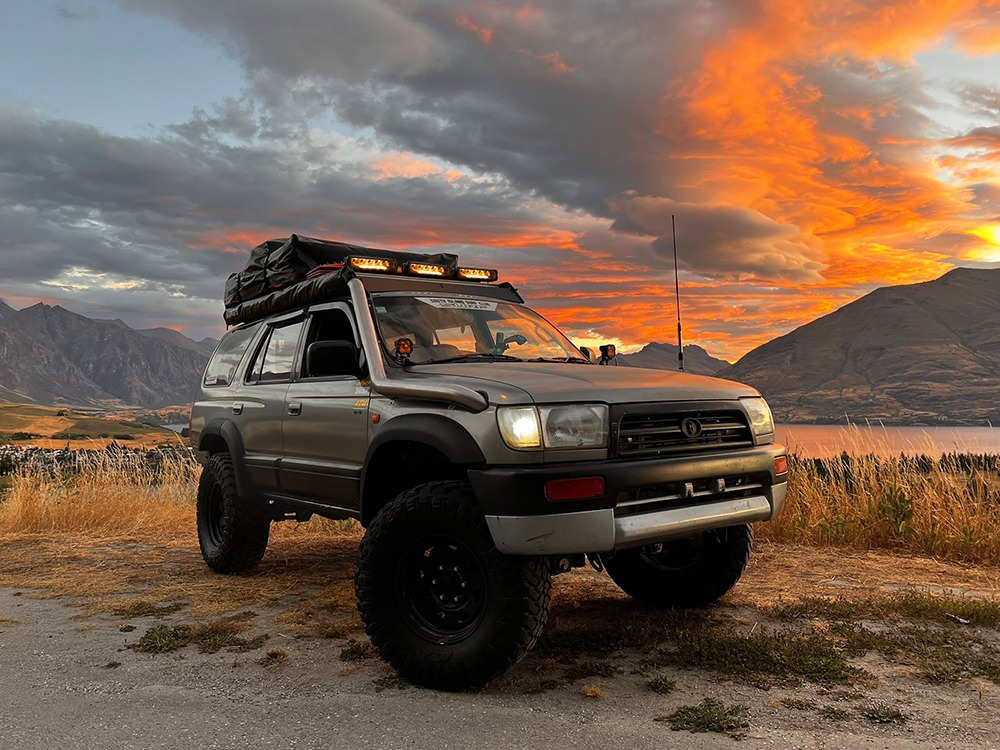

The LR-850 is a proven favourite across passenger car, 4x4, LCV, and heavy truck applications, now enhanced with an integrated amber flashing beacon for increased safety and functionality.

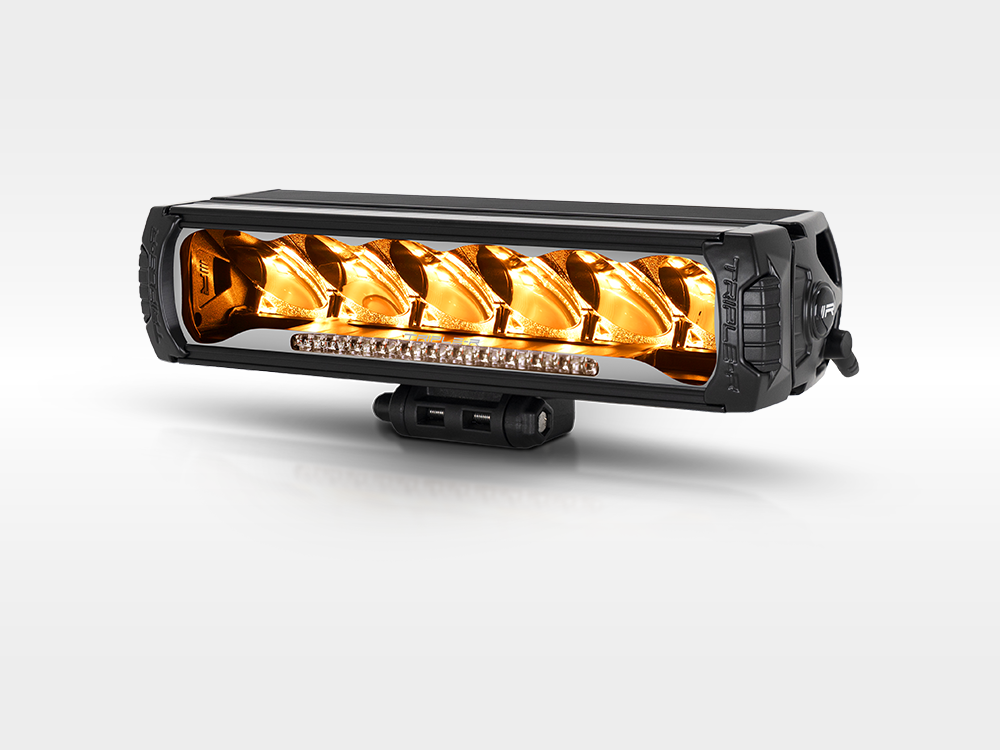

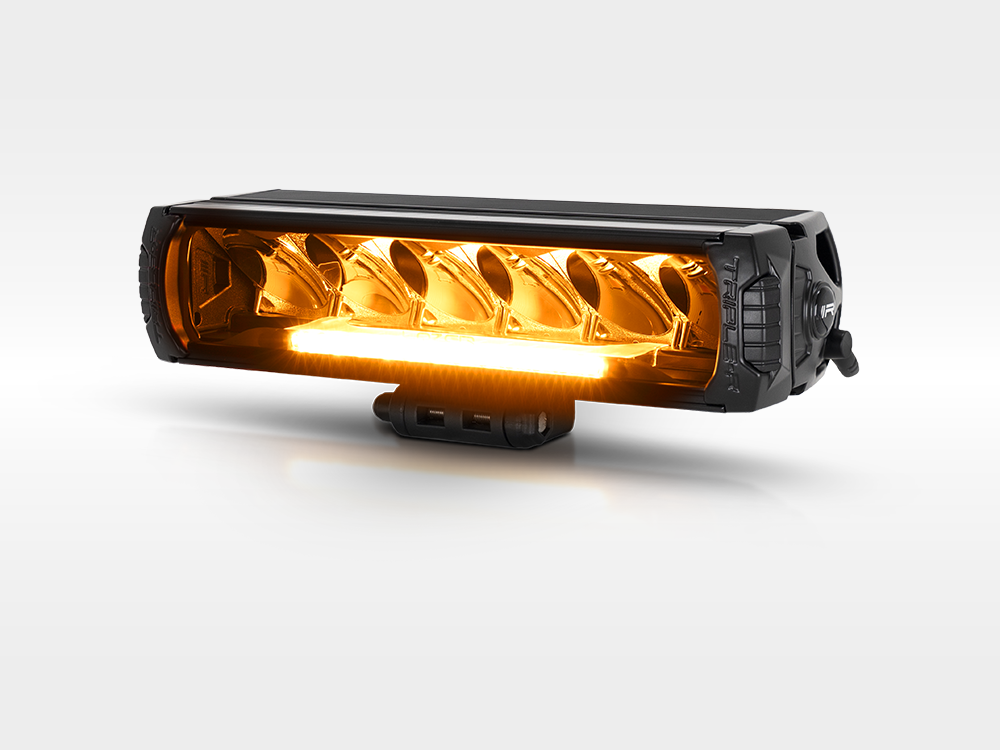

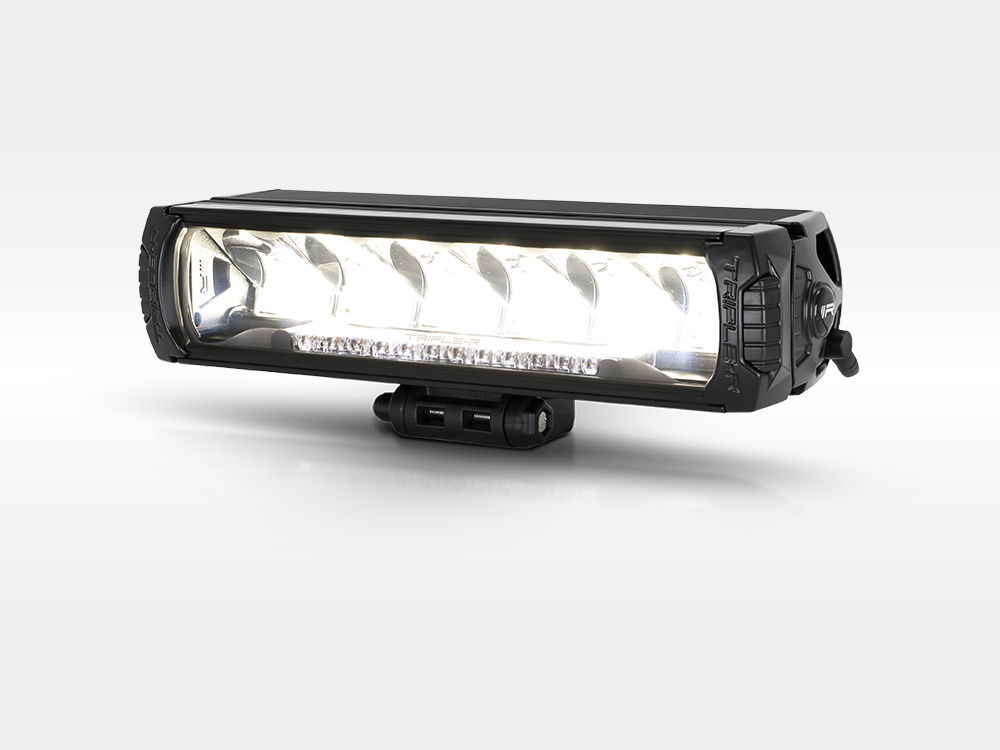

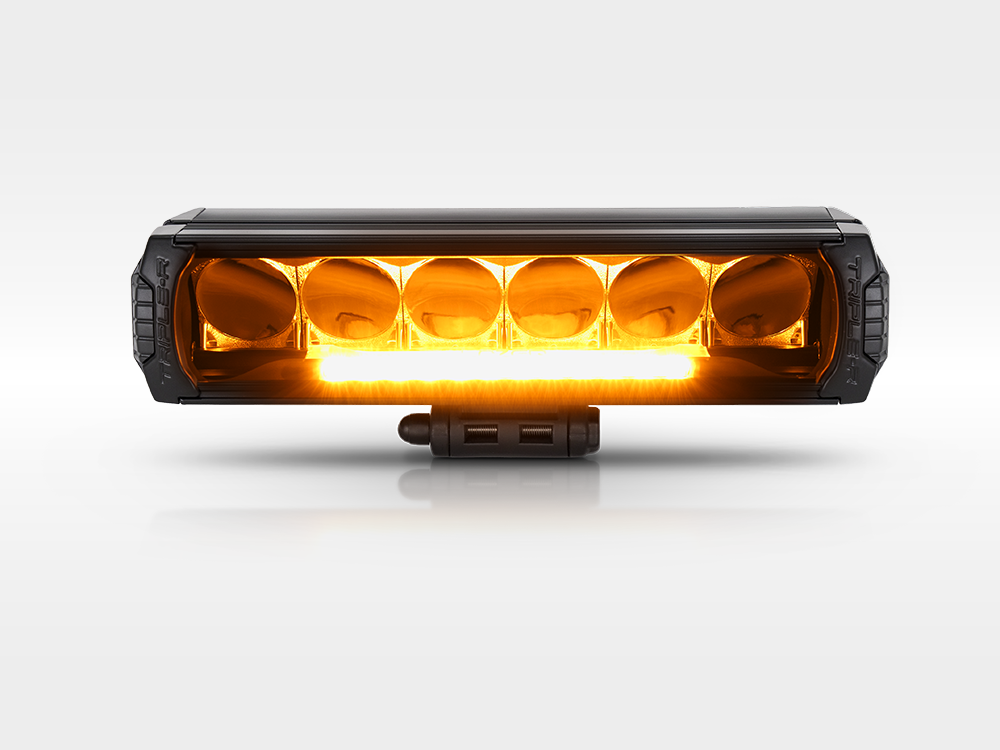

The lamp incorporates two forward-facing amber warning patterns, delivering effective on-vehicle warning capability without compromising driving light performance. The amber beacon / warning light function is SAE/DOT compliant (W-1) and allows flash patterns to be selected and synchronised across multiple lamps during installation, or changed on demand using a momentary switch. Beacon functionality can be combined with an integrated backlight, configurable as white or amber via a simple wiring selection, or left disconnected for driving-light-only operation, enabling installations that remain highly visible in both daytime and night-time conditions.

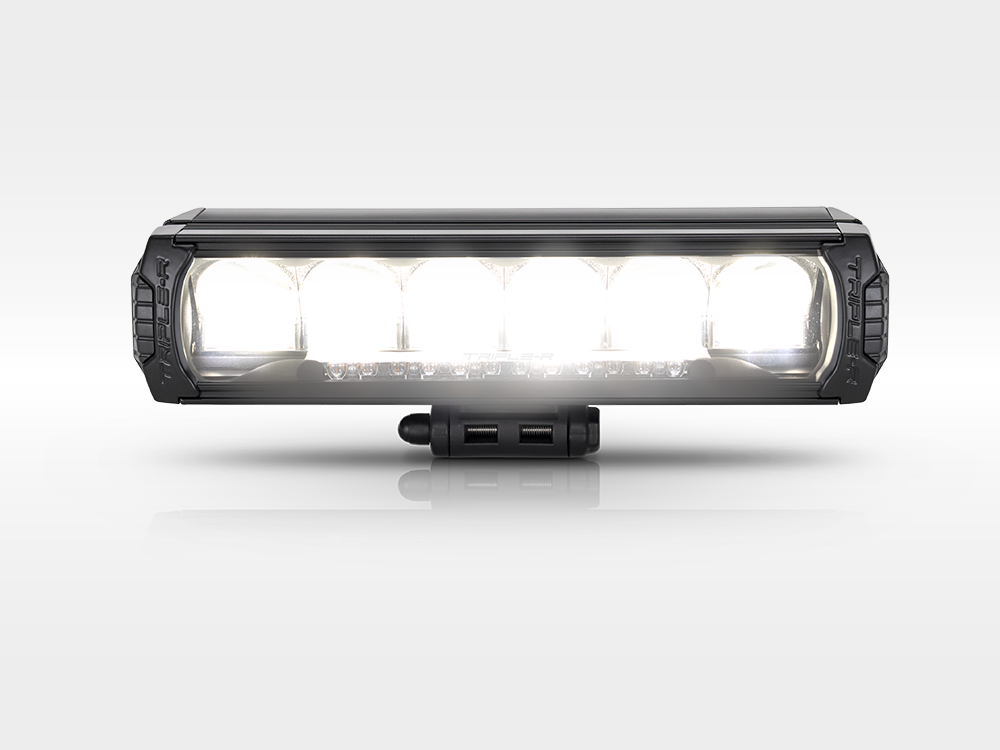

Optimised for road use, the LR-850 delivers a focused spot beam pattern with excellent long-range performance and useful lateral spread. Producing 6,930 lumens and achieving 1 lux at 530 metres, the lamp provides a 28° horizontal spread, supporting confident high-speed driving. SAE/DOT compliance as a high-beam driving light applies in the low output mode only, enabled by Triple-R’s dual-output technology. The output mode can be selected during installation, while a flash-to-dim function allows the lamp to be switched between high and low output when required.

Like all Triple-R products, the LR-850 with Beacon function has been designed and engineered to deliver a powerful driving light with perfectly homogenous beam pattern. The colour temperature of the light, at 5000K, is carefully selected to maximise definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time. Performance is complemented by a superior build quality, borne out of our in-house UK manufacture, and backed up by our comprehensive 5year warranty.
