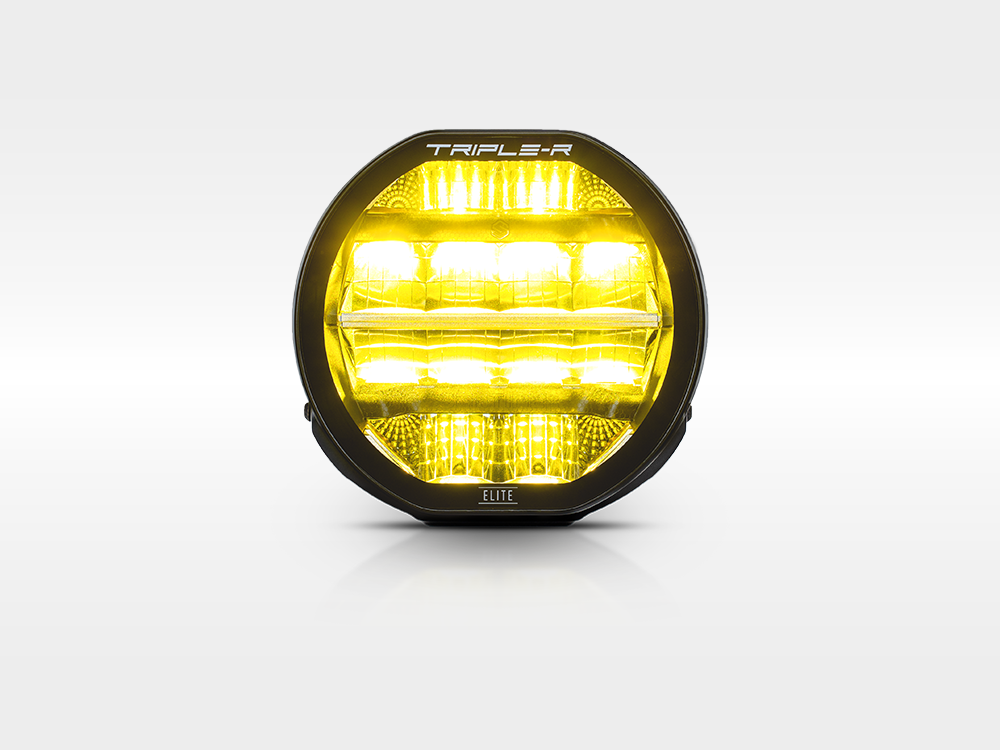

Sentinel 7" Elite with Backlight - Yellow
Sentinel 7" Elite with Backlight - Yellow Sentinel 7" Elite with Backlight - Yellow Sentinel 7" Elite with Backlight - Yellow Sentinel 7" Elite with Backlight - Yellow

Sentinel 7" Elite with Backlight - Yellow

Product Code
#0S7-US-ELITE-PL-YLW-SM

From US$500.00

To US$560.00

1. Sentinel 7" Elite (with Backlight) - Yellow *
Sentinel 7" Elite with Backlight - Yellow

In stock

Find a Stockist

US$500.00

PAYMENT & DELIVERY
Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.

The latest generation of the Triple-R range, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.

Boasting 4,620 lumen, delivering 1 lux to 433m, the Triple-R 750 LED driving light provides improved left/right spread of light without compromising the up/down spread which ensures suitability of the lights to a wide array of vehicles, including where the lights are mounted high on the vehicle (e.g. heavy trucks). Highly-reflective, vacuum-metallised optics, designed and engineered in-house, in the UK, using advanced CAD design software, mean more light is directed to where you need it, across a perfectly homogenous beam pattern without flat spots. The colour temperature of the light, at 5000k, is carefully selected to maximise definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time.

The Triple-R 750 comes with the option to connect an integrated position/side light function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber coloured position lights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 750 act as a high beam driving light only. The high beam function is approved to ECE Regulation 112, while the position light function (white only) is approved to ECE regulation 7, allowing for your Triple-R 750 to operate in parallel with your standard headlights (where UNECE regulations are recognised).

Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.

Combination of 24 premium ‘bin’ Yellow LEDs.

Contemporary lamp design with stealth black internal appearance.

Yellow color temperature and 80CRI maximizes sharpness and definition.

Integrated white and amber backlight function.

Ultra-reflective vacuum-metallized spot and wide optics.

Supplied with ‘slim’ diecast aluminum mounting bracket featuring Sentinel stamp.

Electronic thermal management system optimizes light output to preserve longevity of the LEDs.

Anodized pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection.

CAE optimized heatsink offers improved thermal dynamics.

Over voltage protected.

Reverse polarity protected.

‘Unbreakable’ polycarbonate lens with hardcoat lacquer.

A2 stainless steel fasteners with automotive grade black coating.

IP68 watertight – 1.5m submersion (30mins).

5-year warranty.

Supplied with pre-wired male/female 3-Pin Superseal connectors.

Designed & manufactured in the UK.

  Sentinel 7''
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight2.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux9600 Lm
Total Driver 'FOV' Flux 5568 Lm
Colour TemperatureYellow
Power Consumption110 Watts
Current Draw (14.4V)8 Amps
Connector3-Pin Superseal (+25cm Cable)
CERTIFICATION
IP Rating #IP68
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

- Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Triple-R Lights' products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


PHOTOMETRICS
0.25 lx Line1077 metres
0.5 lx Line762 metres
1 lx Line539 metres
3 lx Line311 metres

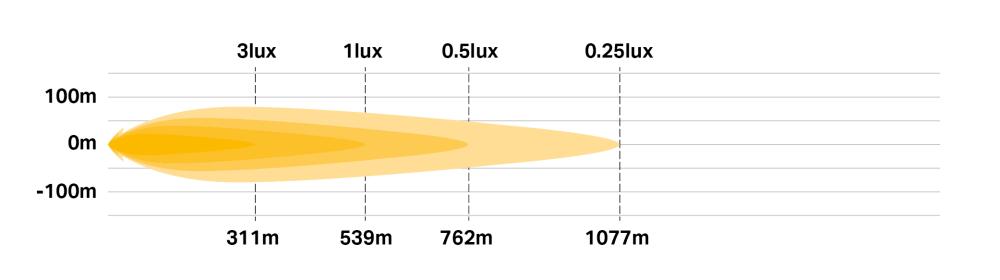

Sentinel 7''  photometric diagram
BEAM DISTRIBUTION
Horizontal52 degrees
Sentinel 7''  beam distribution
Sentinel 7'' Beam Photo
DIMENSIONS
Width7"
Depth3.2"
Height6.6"

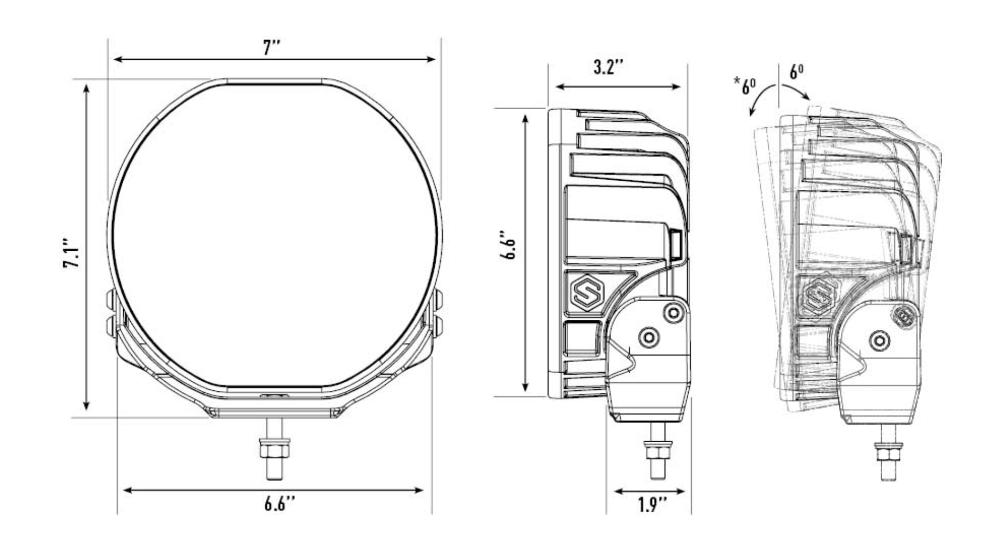

Sentinel 7#'' dimensions diagram
  • x1 Sentinel 7'' Elite LED Lamp
  • x1 'Slim' Mount Kit (1141-0S7-K)
  • x1 Black Lens Cover (LC-0S7-lllR)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)


Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel.

@TRIPLE-R LIGHTS
