Sentinel 9'' Elite (with Backlight)
Sentinel 9'' Elite (with Backlight) Sentinel 9'' Elite (with Backlight) Sentinel 9'' Elite (with Backlight) Sentinel 9'' Elite (with Backlight) Sentinel 9'' Elite (with Backlight) Sentinel 9'' Elite (with Backlight)

Sentinel 9'' Elite (with Backlight)

Rating:
100%
Product Code
#0S9-US-ELITE-PL-WM

From US$585.00

To US$655.00

1. Sentinel 9'' Elite (Wide Mount) *
Sentinel 9'' Elite (with Backlight)

In stock

Find a Stockist

US$585.00

PAYMENT & DELIVERY
Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.

The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Triple-R Lights’ name. The Sentinel Elite product comes available with a sleek black internal appearance, and a combination of 32 high power LEDs, representing the very best lighting performance as expected from a product bearing the ‘Elite’ tag. Lighting performance aside, meticulous product styling ensures this is a product that stands out for all the right reasons.

Emitting 15,232 raw lumens, the lamps deliver 1 lux to 742m, but it is in the 52 degree horizontal spread of light, and visibility at the sides of the road or track in the mid to long-range that the Sentinel Elite really comes into its own. For a demonstration of the lighting performance, please click the videos section below. Like all Triple-R products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead.

The stealth design of the black variant of the Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. The aesthetic appeal of the lamp is furthered through the ‘wide’ diecast aluminium mounting bracket, with Sentinel stamp, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black. The result is a premium finish on the product that is fully protected against aesthetic deterioration or corrosion. An alternative ‘slim’ mounting bracket, along with a range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories. Both versions have the option to connect white or amber back/side light function, for an even more distinct look.

As with all Triple-R products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.

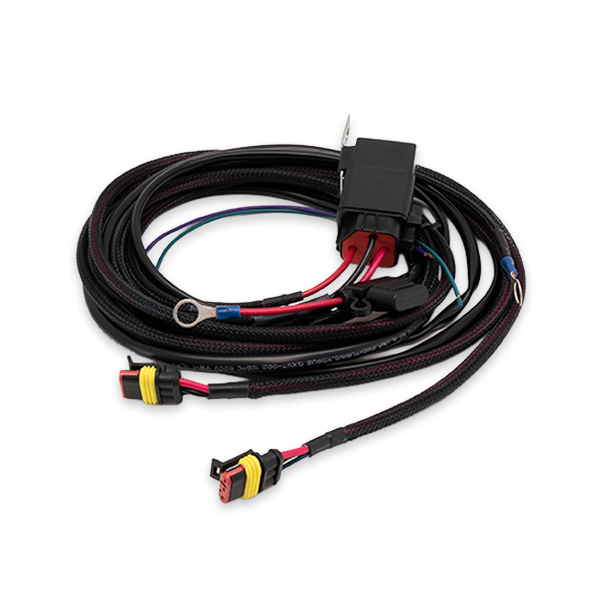

PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY.



NOT FOR HIGHWAY USE






Ultra-reflective vacuum-metallised spot and wide optics

Contemporary lamp design

Supplied with ‘wide’ diecast aluminium mounting bracket featuring Sentinel stamp

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

Integrated amber or white Backlight

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

A2 stainless steel fasteners with automotive grade black coating

Supplied with Triple-R branded black lens cover

UNECE approved Reg 10

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

Supplied with pre-wired male/female 3-pin Superseal connectors

Designed & manufactured in UK

  Sentinel 9'' Elite bl
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight2.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux15232 Lm
Total Driver 'FOV' Flux 9048 Lm
Colour Temperature5000k
Power Consumption130 Watts
Current Draw (14.4V)9.2 Amps
Connector3-Pin Superseal (+25cm Cable)
CERTIFICATION
IP Rating #IP68
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

- Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Triple-R Lights' products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


PHOTOMETRICS
0.25 lx Line1483 metres
0.5 lx Line1049 metres
1 lx Line742 metres
3 lx Line428 metres

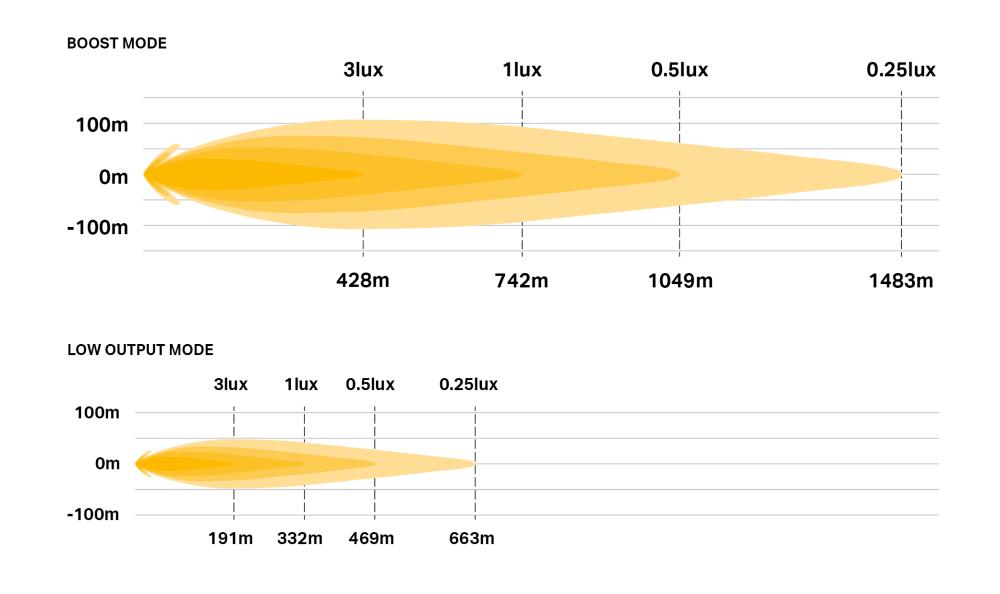

Sentinel 9'' Elite bl photometric diagram
BEAM DISTRIBUTION
Horizontal52 degrees
Sentinel 9'' Elite bl beam distribution
Sentinel 9'' Elite bl Beam Photo
DIMENSIONS
Width8.86"
Depth3.54"
Height9.06"

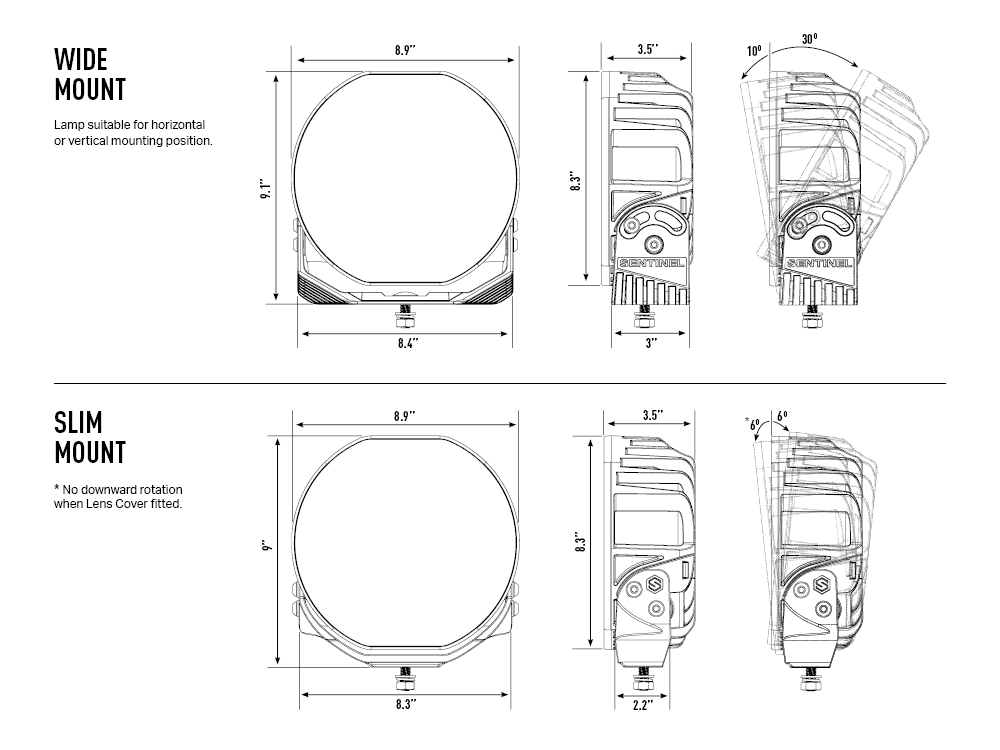

Sentinel 9'' Elite bl dimensions diagram
  • 1x Sentinel 9'' Elite LED Light
  • 1x Wide Mount (1141K)
  • 1x Black Lens Cover
  • 1x Fitting Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)


Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel.

@TRIPLE-R LIGHTS
