Utility-50

Rating:
100%
Product Code
#00U50-US

From US$185.00

To US$335.00

1. Lighting Options *
Utility-50

In stock

Find a Stockist

US$185.00

PAYMENT & DELIVERY
Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.

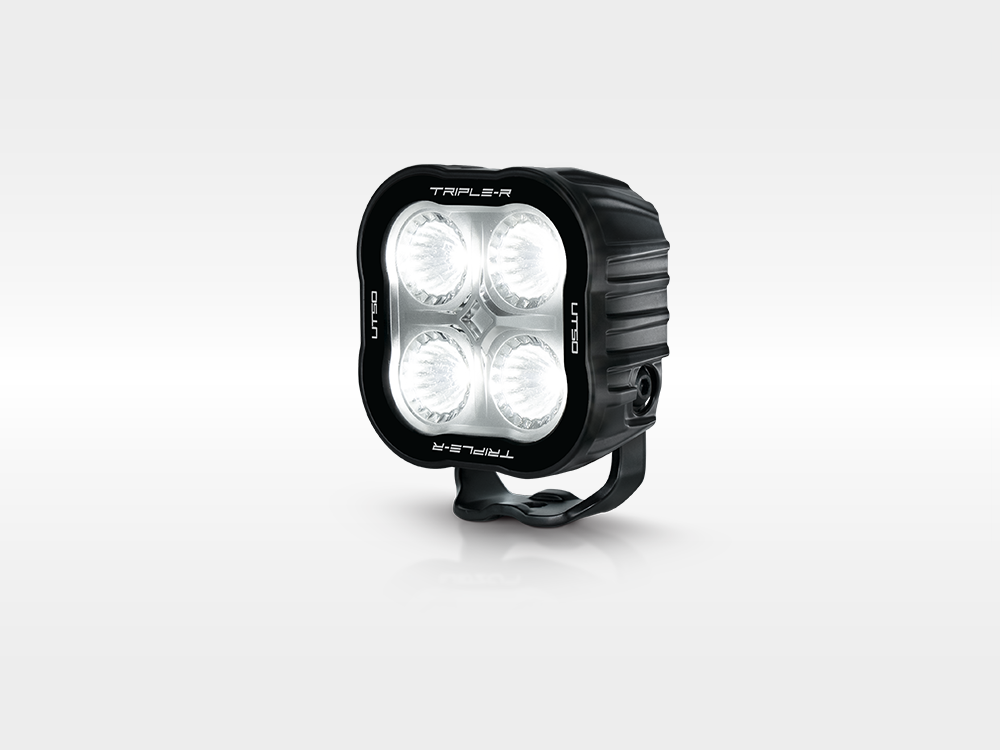

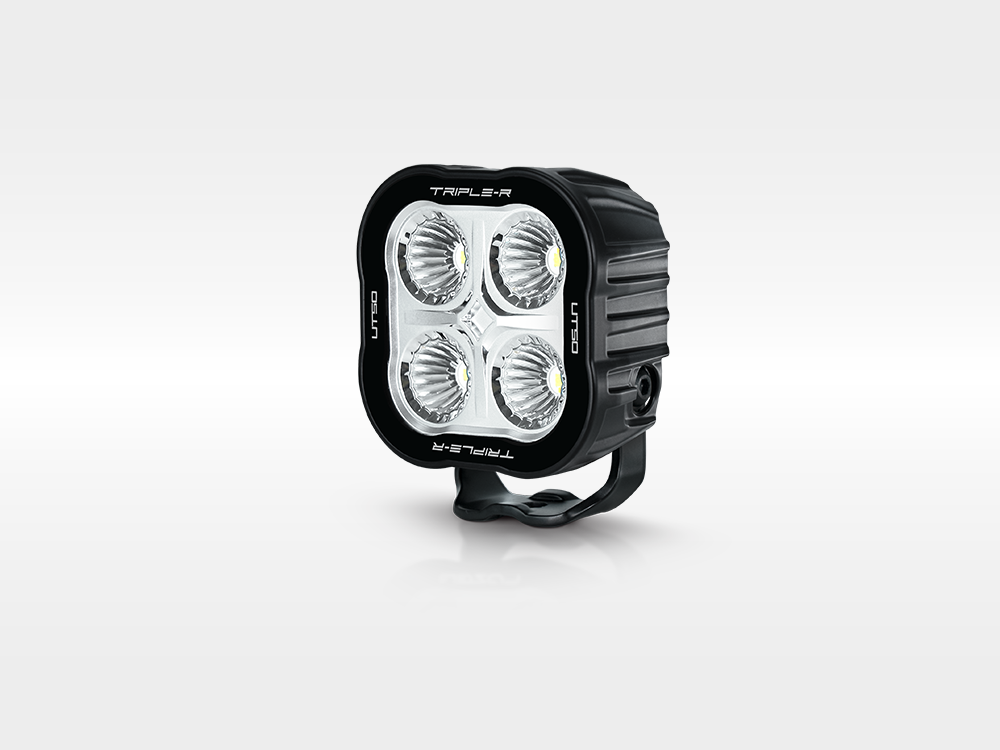

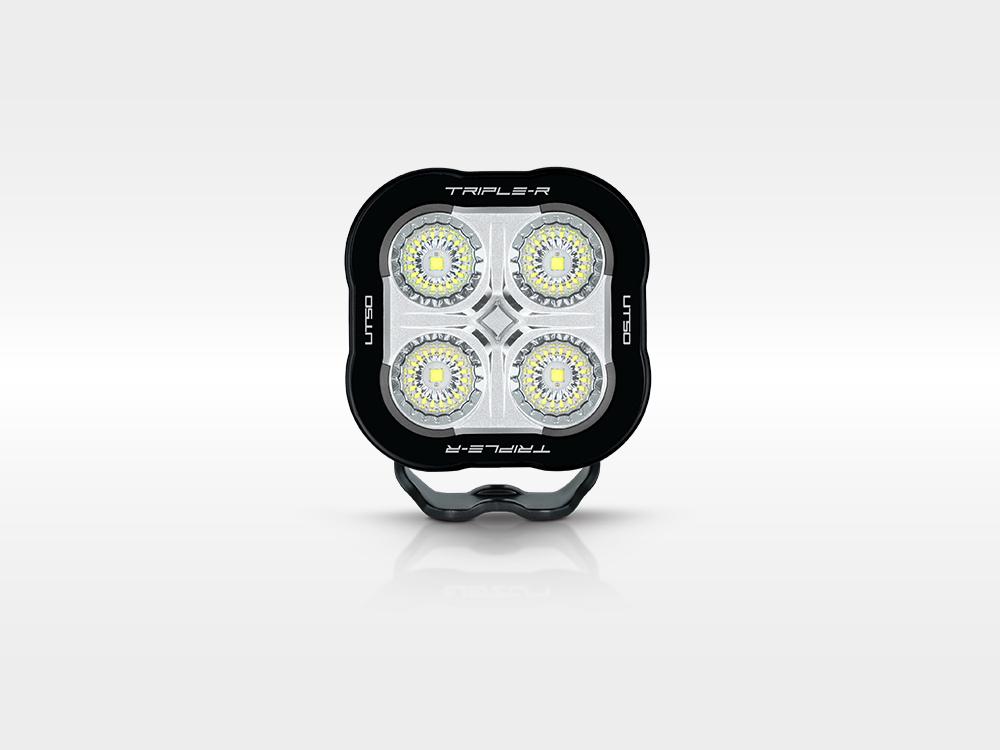

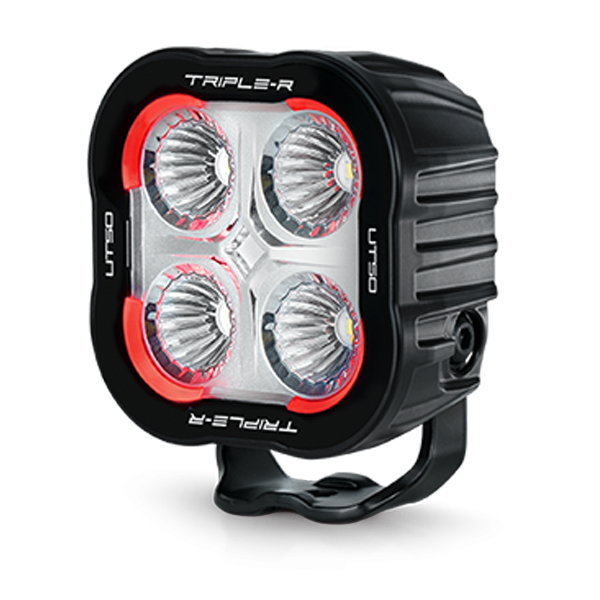

Matching form and function, the Utility-50 is a medium duty LED work light packed with performance, style, robustness, and functionality. At its core, 4x high power, premium-bin 13W LEDs deliver high levels of illumination befitting a vast array of applications and vehicles and machine types. The carefully selected 5000K colour temperature helps define the light output which is both powerful, comfortable to use over prolonged periods, and proven to optimise sharpness and definition between shapes and colours thanks to its high CRI (colour rendering index).

The Utility-50 is able to deliver more than just a high-performance work light. A version of the Utility-50 is available with integrated red tail-light function, Beacon function, or both!

With its front-on dimensions shared with the RP Series, 4'' (h) x 4'' (w), this gives an indication of the lamp’s lighting competency, while the reduced depth of the lamp facilitates installation. That reduction in overall size isn’t to the detriment of performance however with the lamp carefully designed and engineered in-house, in the UK, to optimise light output considering thermal conductivity, crucial to preserving the lamps longevity and trouble-free use over many years. The strength and reliability of the Utility-50 is furthered by additional design features and build quality an upshot of our UK production, including: unbreakable polycarbonate lens with hardcoat, EMC protection - CISPR:25 (Class 3), automotive grade corrosion resistance a result of our in-house pre-treatment and powder coat facility, and IP68 and IP69K approval. All this backed up by our comprehensive 5-year warranty (2 years for non-automotive / industrial applications).

Depending on the model selected the Utility-50 comes supplied with male/female Deutsch connectors. The Utility-50 also comes supplied with a satin black painted stainless-steel mounting system, with loose M10 bolts and fasteners.

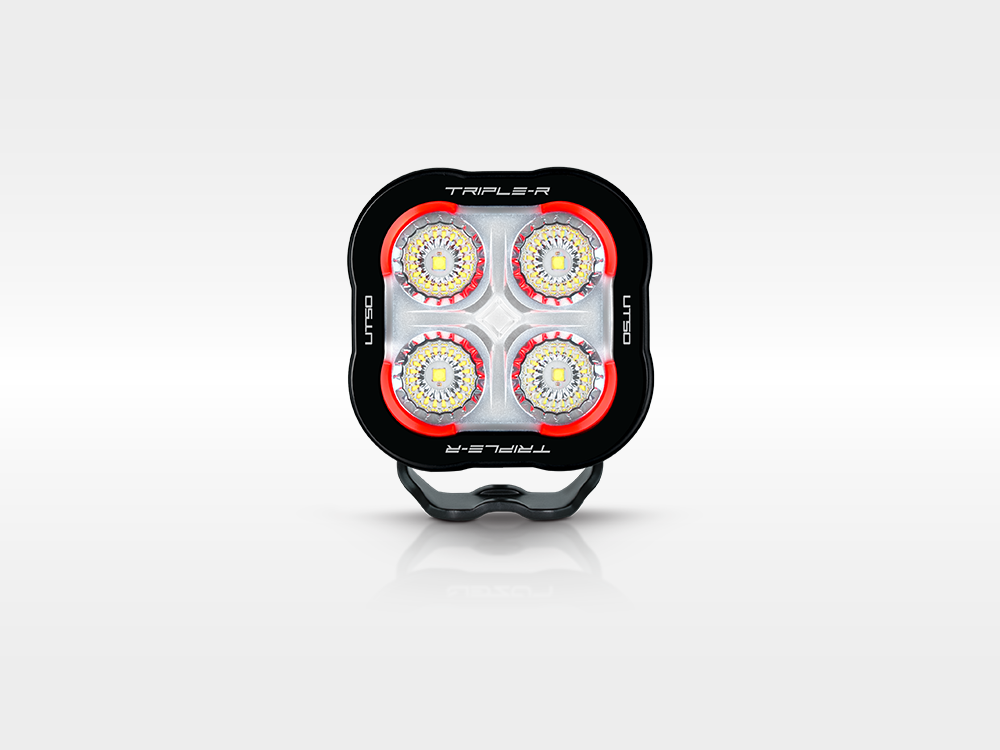

Optional red tail-light function available

Optional Beacon function available

5000k colour temperature

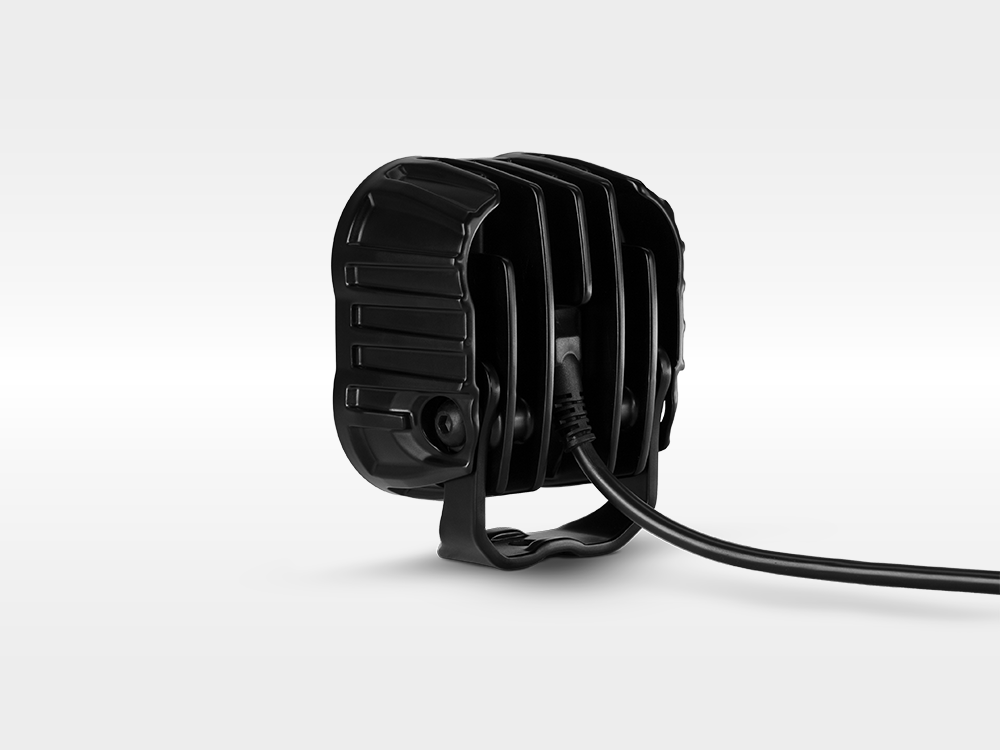

CAE optimised cooling system with Electronic Thermal Management

Vacuum-metallised optics for superior light utilisation

Supplied with versatile stainless steel mounting bracket and fasteners

Fixed bolt ‘fast-mount’ solution available

‘Unbreakable’ polycarbonate lens with hardcoat

Automotive grade corrosion resistance

EMC protected- CISPR:25 (Class 3)

IP68 / IP69k approved

Over voltage protected

Reverse polarity protected

Includes male/female Deutsch connectors

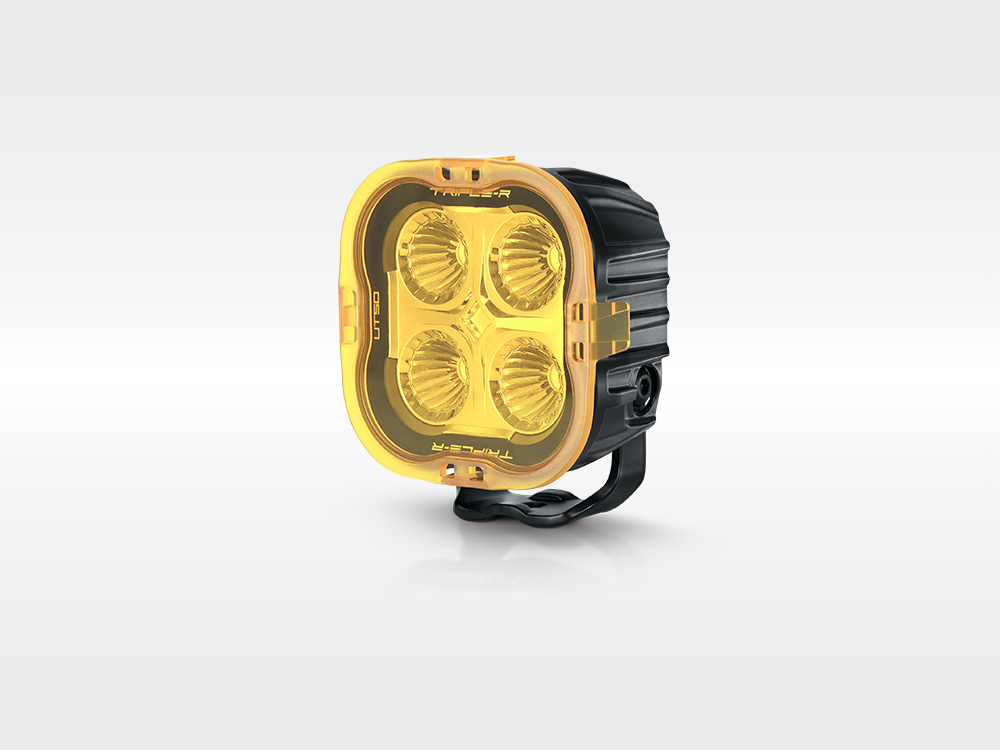

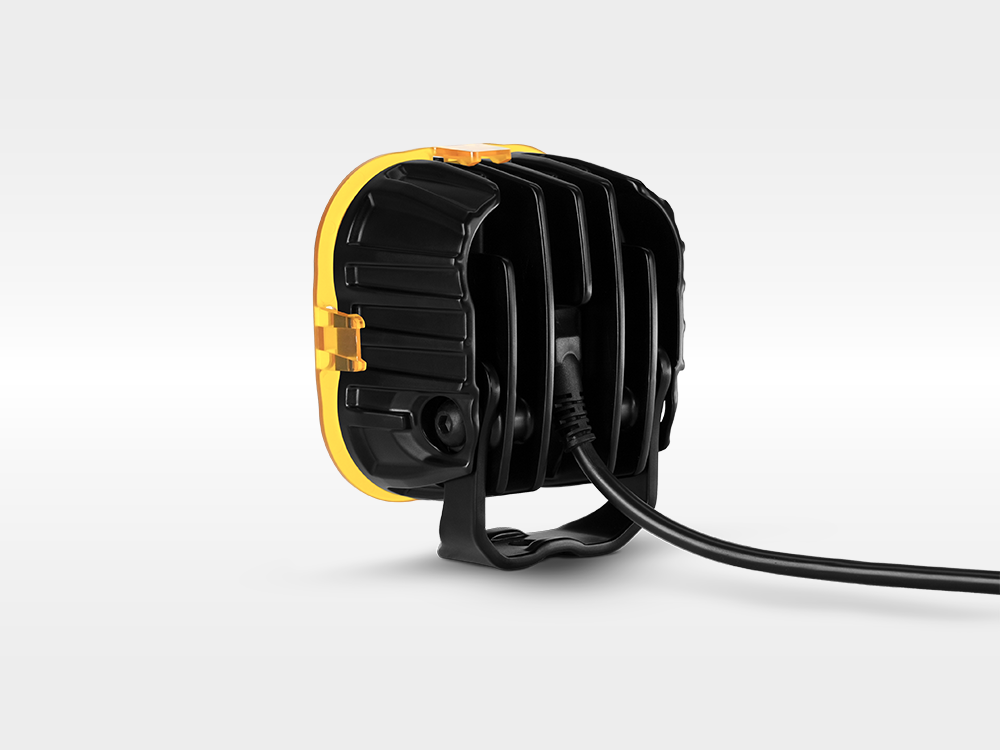

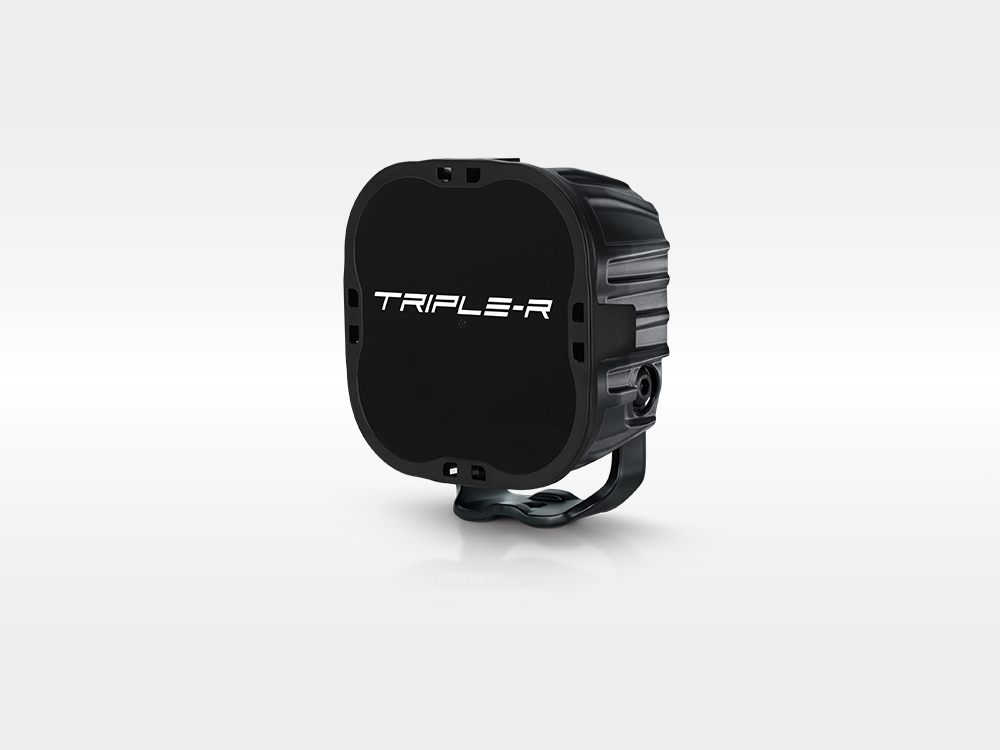

Comprehensive range of lens covers available

5year warranty (2year for non-automotive / industrial applications)

Made in the UK

  UTILITY-50
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight1.4 lbs
HIGH BEAM FUNCTION
Total Luminous Flux5,000 Lm
Total Driver 'FOV' Flux 4,380 Lm
Colour Temperature5000K
Power Consumption50 Watts
Current Draw (14.4V)3.6 Amps
Peak Current Draw7.25 Amps
Connector2-Pin/4-Pin Deutsch DT (+28cm Cable) / Red tail & beacon lamps sold with bare wires (+28cm Cable)
CERTIFICATION
IP Rating #IP68 / IP69K
EMC CertificationJ551-4 / J1113-41
EMC ProtectionCISPR-25 (Class 3)
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2
OPERATING CONDITIONS
Operating Temperature-40oC … +90oC
Vibration (BS EN 60068)10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz

- Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90o left/right, and +/- 90o up/down.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.



* - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.


PHOTOMETRIC & BEAM DISTRIBUTION
Horizontal / Vertical Beam Angle80° / 80°
1 lx Line71 metres
5 lx Line32 metres
20 lx Line16 metres
50 lx Line *10 metres
Utility-50 photometric diagram
DIMENSIONS
Width4.1''
Depth2.3''
Height4.1''
Utility-50 dimensions diagram
  • Utility-50 LED Work Light
  • Mounting Bracket (attached to lamp)
  • Installation Instructions
